5–44 Maintenance and Service Guide
Removal and Replacement Procedures

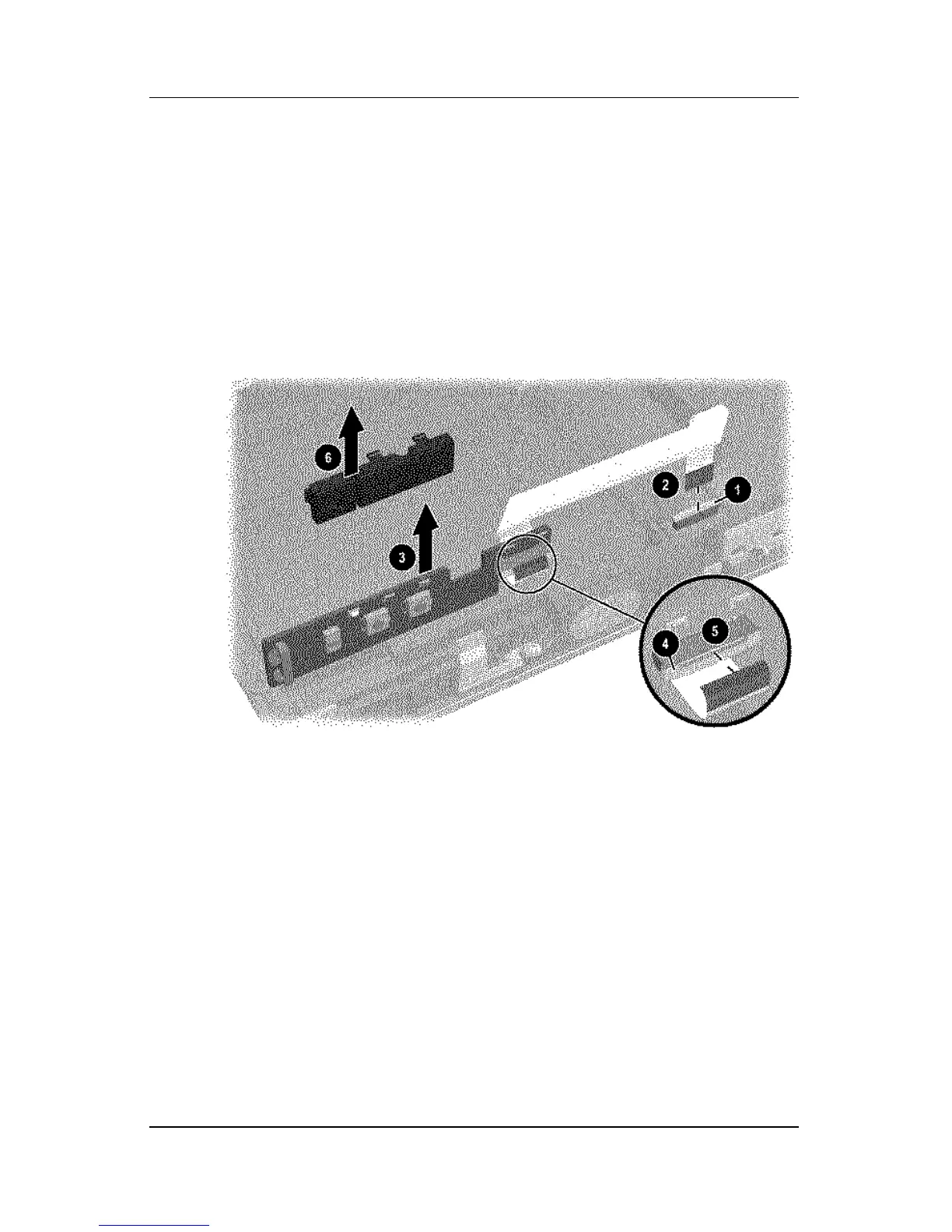

3. Release the ZIF connector 1 on the system board to which
the LED board cable is attached, and then disconnect the
cable 2.
4. Lift the board straight up to remove it 3.
5. Release the ZIF connector 4 on the LED board to which the
LED board cable is attached and disconnect the cable 5.
6. Remove the LED board actuator 6 from the notebook.
Removing the LED Board
Reverse the above procedure to install the LED board.
