Removal and Replacement Procedures
Maintenance and Service Guide 5–13
8. Spread the retaining tabs 1 that secure the Mini PCI
communications board to the socket. The board rises up.
9. Pull the board away from the socket at a 45-degree angle 2.

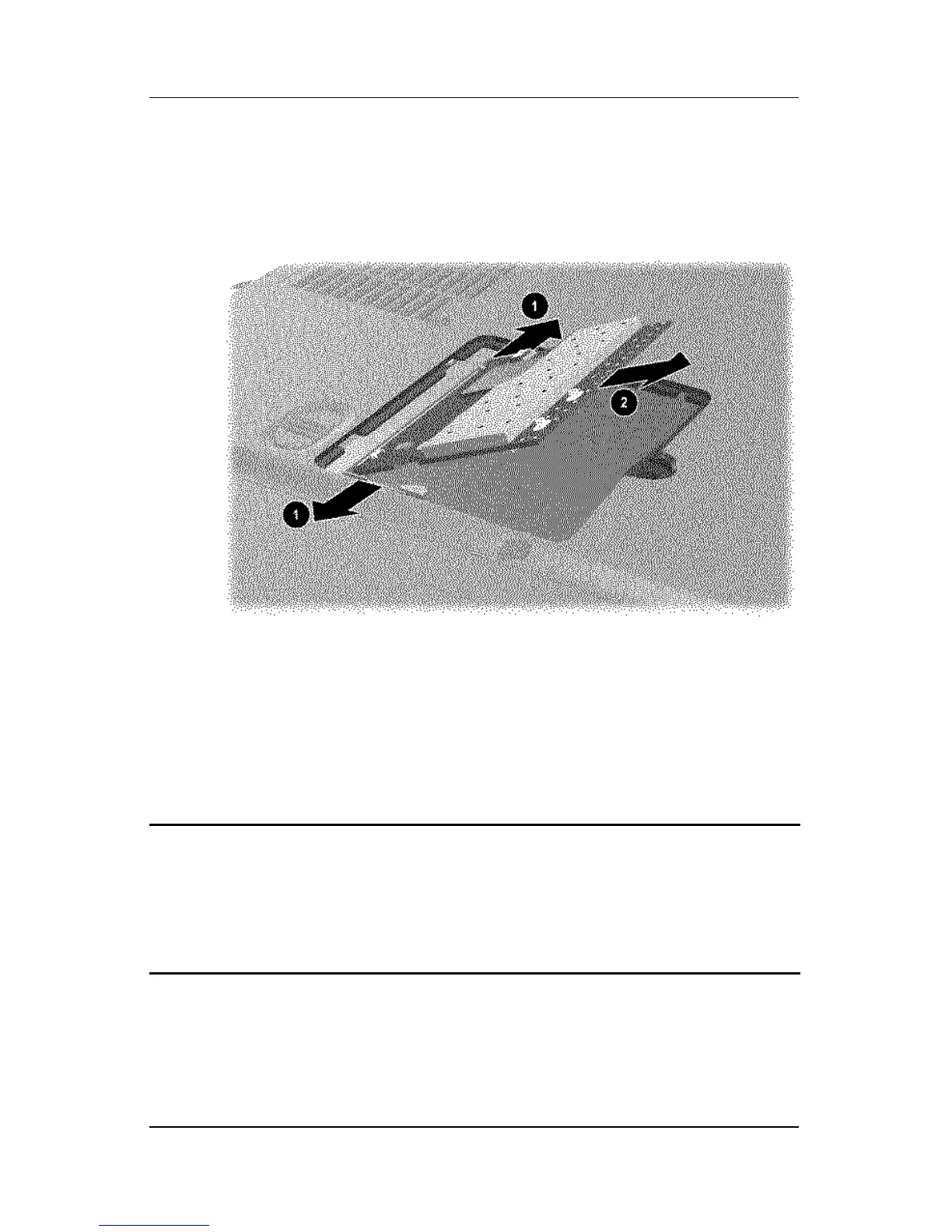

Removing the Mini PCI Communications Board
Reverse the above procedure to install a Mini PCI
communications board.
5.6 MultiBay Device
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook upside down, with the right side
facing you.
Spare Part Number Information
MultiBay devices
24X Max CD-ROM drive
24X Max DVD/CD-RW combo drive
4X Max DVD+RW/R and CD-RW combo drive
Diskette drive
MultiBay battery pack
100044-001
346789-001
344256-001
241995-001
267747-001
