5–36 Maintenance and Service Guide
Removal and Replacement Procedures
7. Close the notebook.
8. Turn the notebook upside down, with the rear panel
facing you.
9. Remove the following screws:
1 Two T8M2.5×9.0 screws from the rear panel
2 Two T8M2.5×9.0 screws from the bottom of the notebook

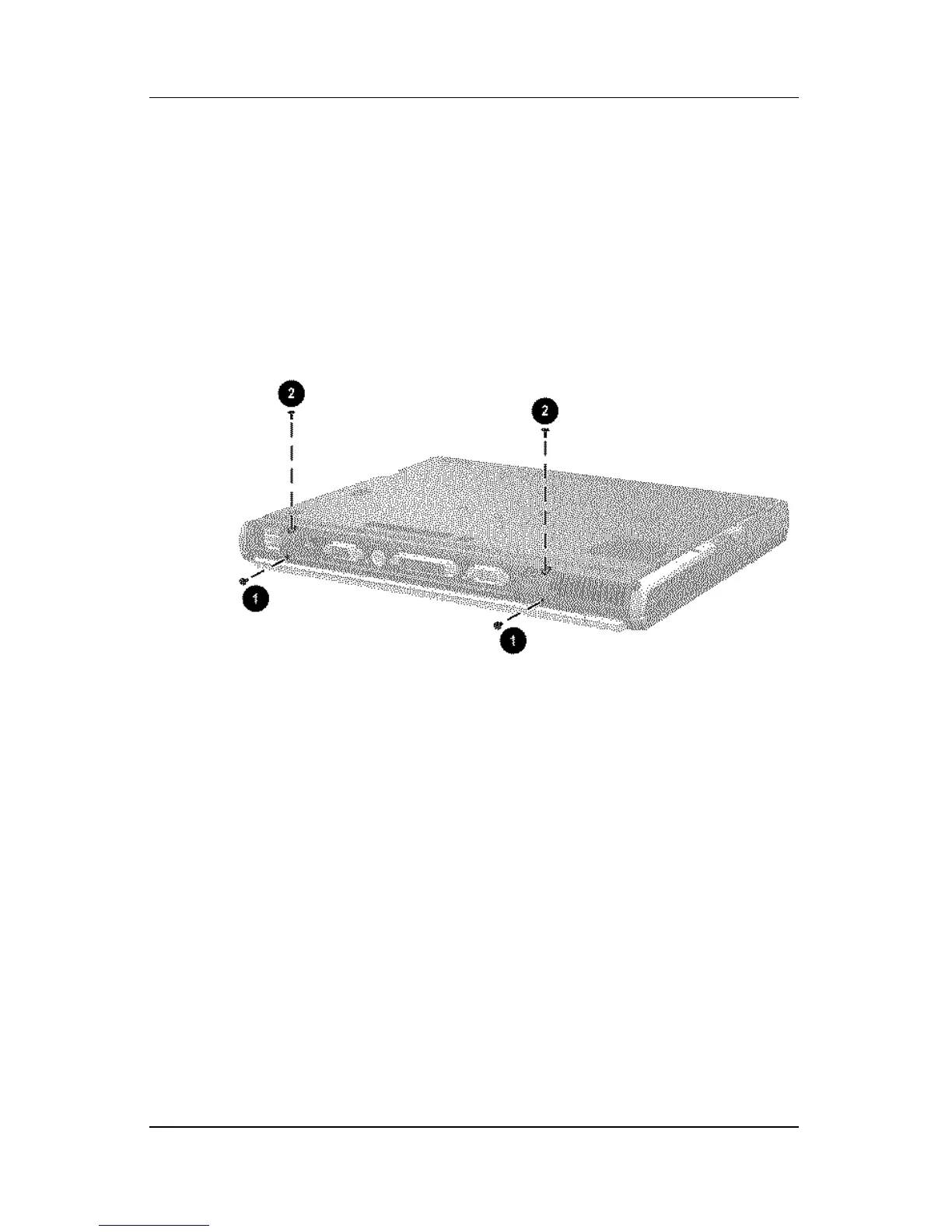

Removing the Display Screws
