5–48 Maintenance and Service Guide
Removal and Replacement Procedures
2. Disconnect the speaker cable 1.
3. Remove the five T8M2.5×5.0 screws 2 that secure the
system board to the notebook.
4. Use a 5.0-mm socket to remove the two HM2.5×9.0
standoffs 3 that secure the system board to the notebook.

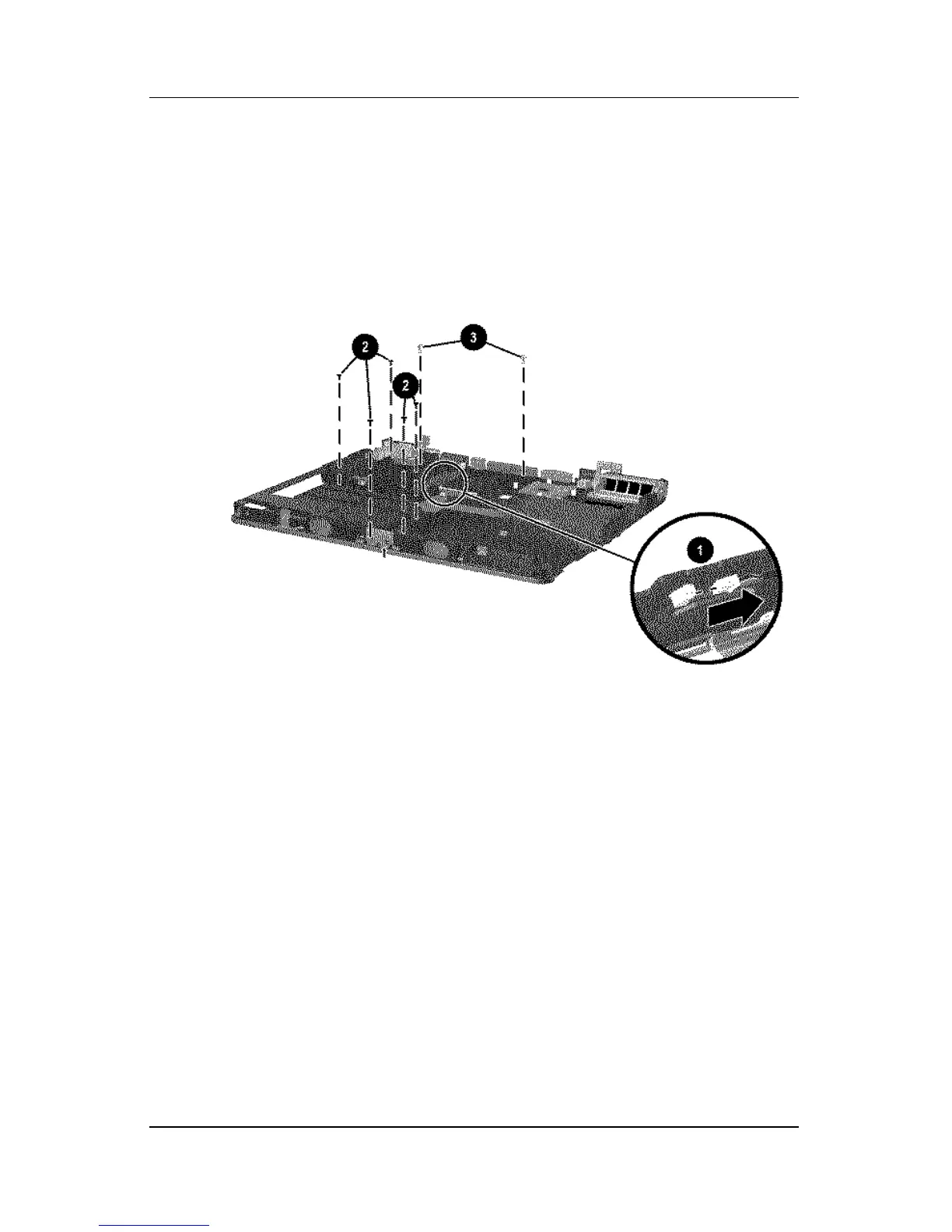

Removing the System Board Screws and Standoffs
