Removal and Replacement Procedures
Maintenance and Service Guide 5–19
8. Release the zero insertion force (ZIF) connector 1 to which
the pointing stick cable is attached and disconnect the
cable 2.
9. Release the ZIF connector 3 to which the keyboard cable is
attached and disconnect the cable 4.

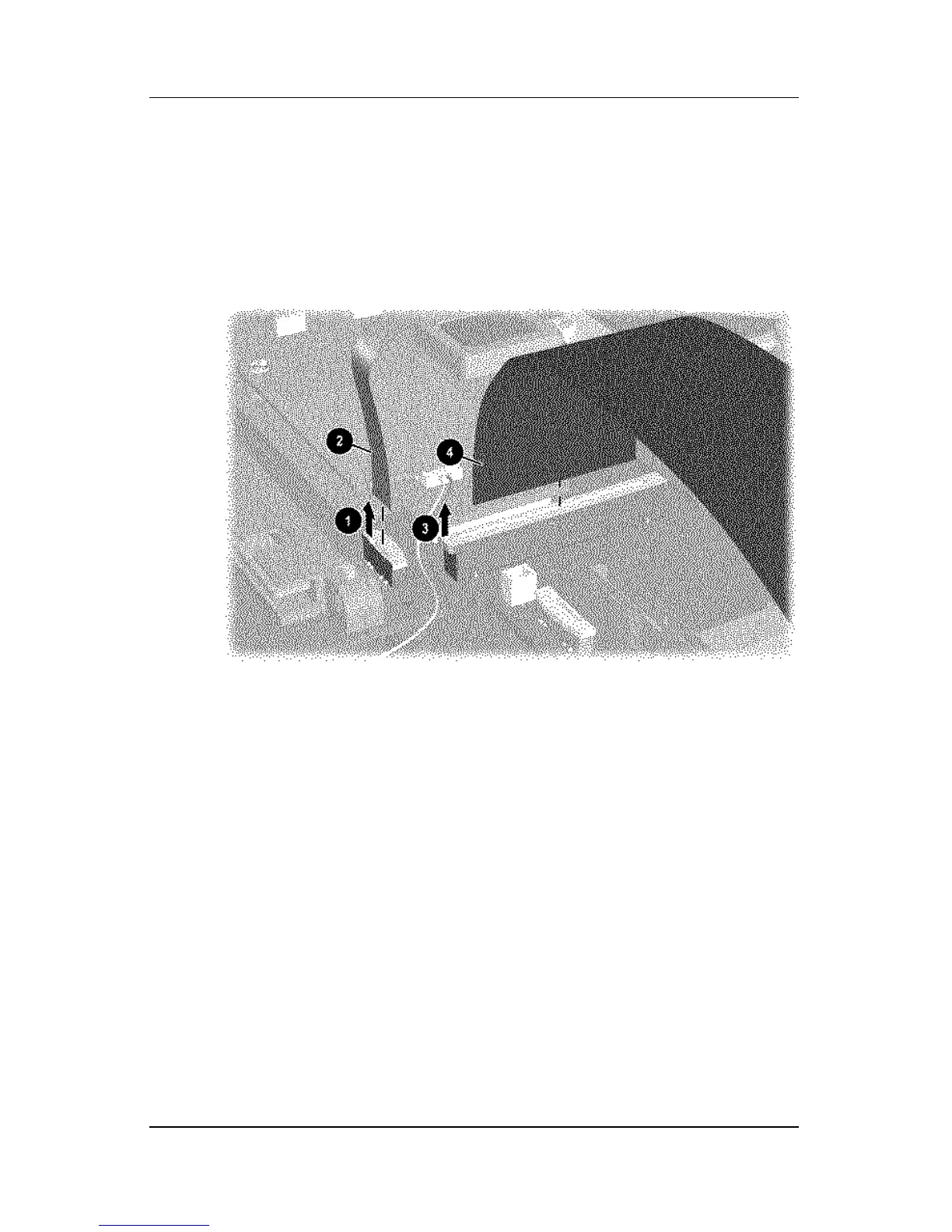

Disconnecting the TouchPad and Keyboard Cables
Reverse the above procedure to install the keyboard.
