Removal and Replacement Procedures
Maintenance and Service Guide 6–37
5. Disconnect the display cable 1 from the system board.
6. Remove the wireless antenna cables 2 from the Mini PCI
compartment and the top cover clips.
7. Remove the 2 Torx8 T8M2.0×9.0 screws 3 that secure the
display assembly to the computer.

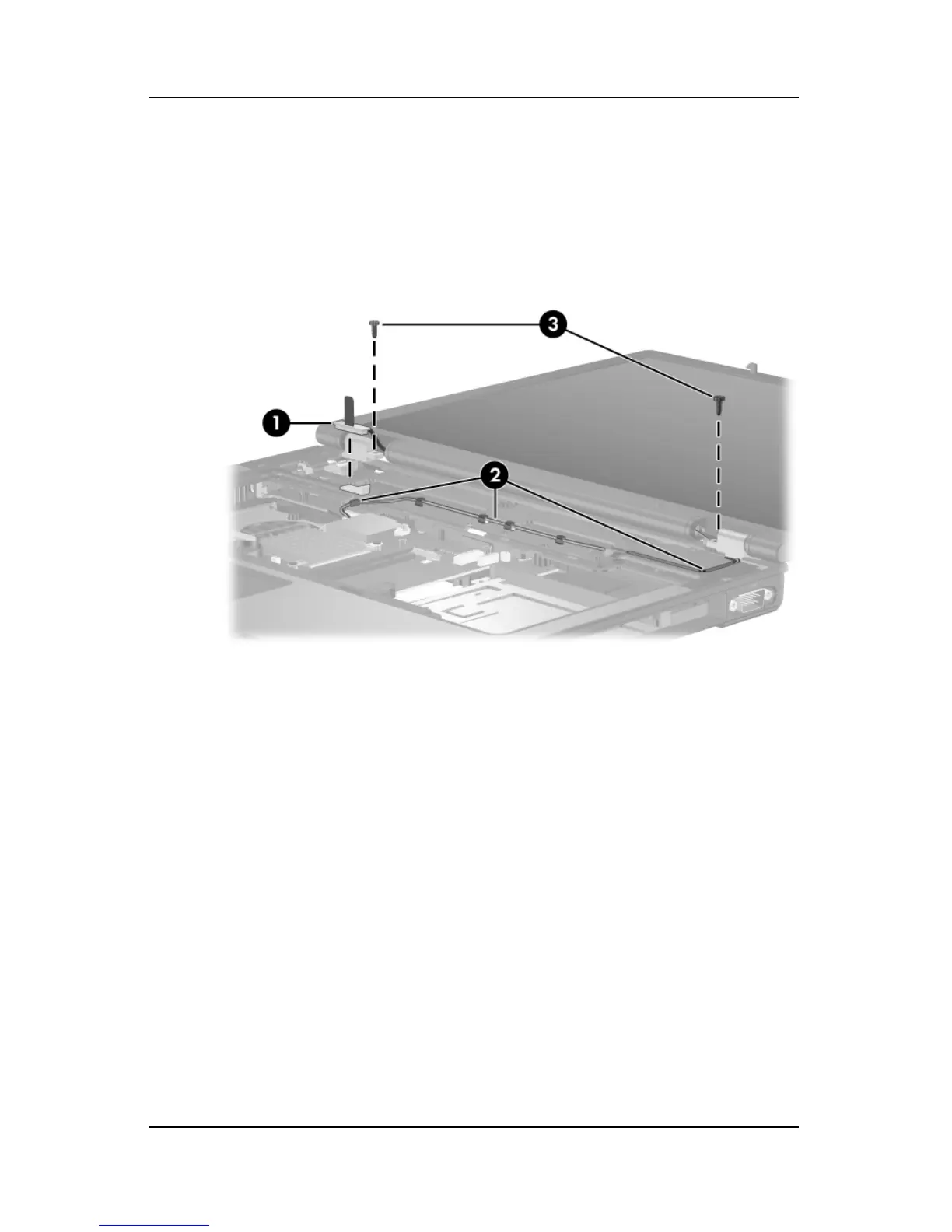

Disconnecting the Display Cable and Removing the Display Screws
To Next Page
