6–38 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook display-side up with the front toward you.
5. Open the notebook as far as possible.
6. Disconnect the wireless antenna cables 1 from the Mini PCI
communications board.
7. Remove the antenna cables from the clips 2 in the top cover.
8. Disconnect the microphone cable 3 from the system board.
9. Remove the microphone cable from the clips 4 in the
top cover.

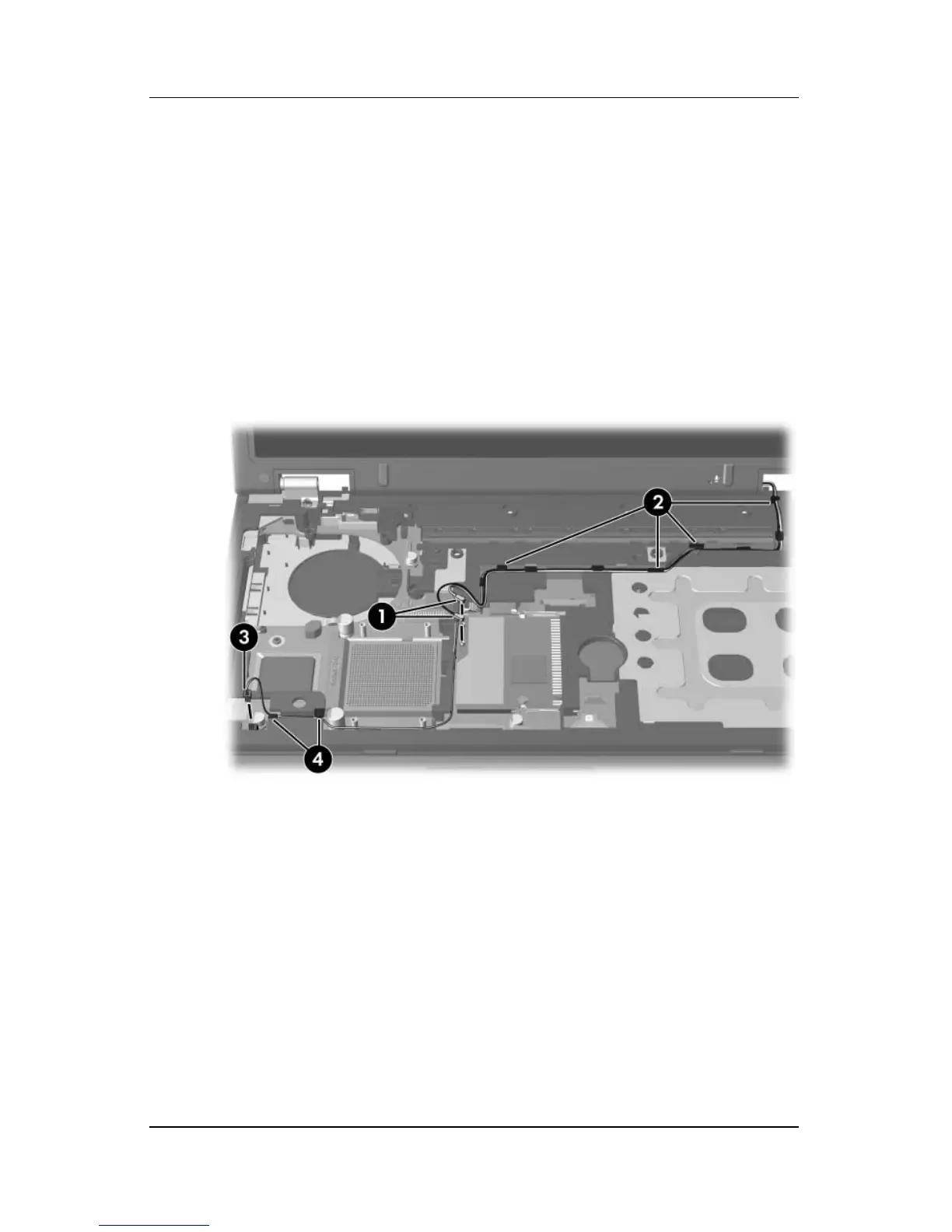

Disconnecting the Wireless Antenna and Microphone Cables
