Removal and Replacement Procedures
Maintenance and Service Guide 5–9

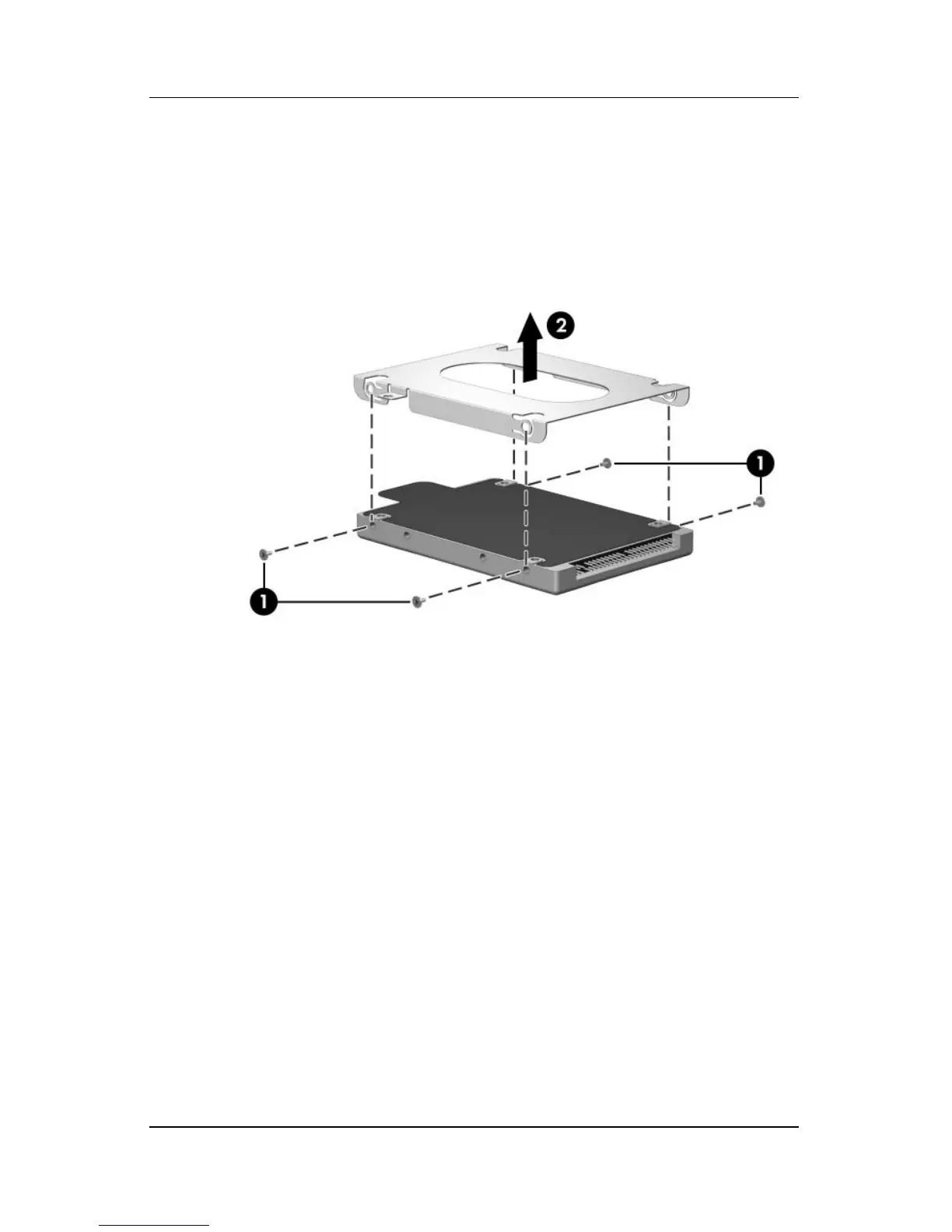

e. Remove the four PM2.5×4.0 screws 1 that secure the
hard drive frame to the hard drive.
f. Lift the frame straight up 2 to remove if from the hard
drive.
Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard drive.
