Removal and Replacement Procedures
Maintenance and Service Guide 5ā15

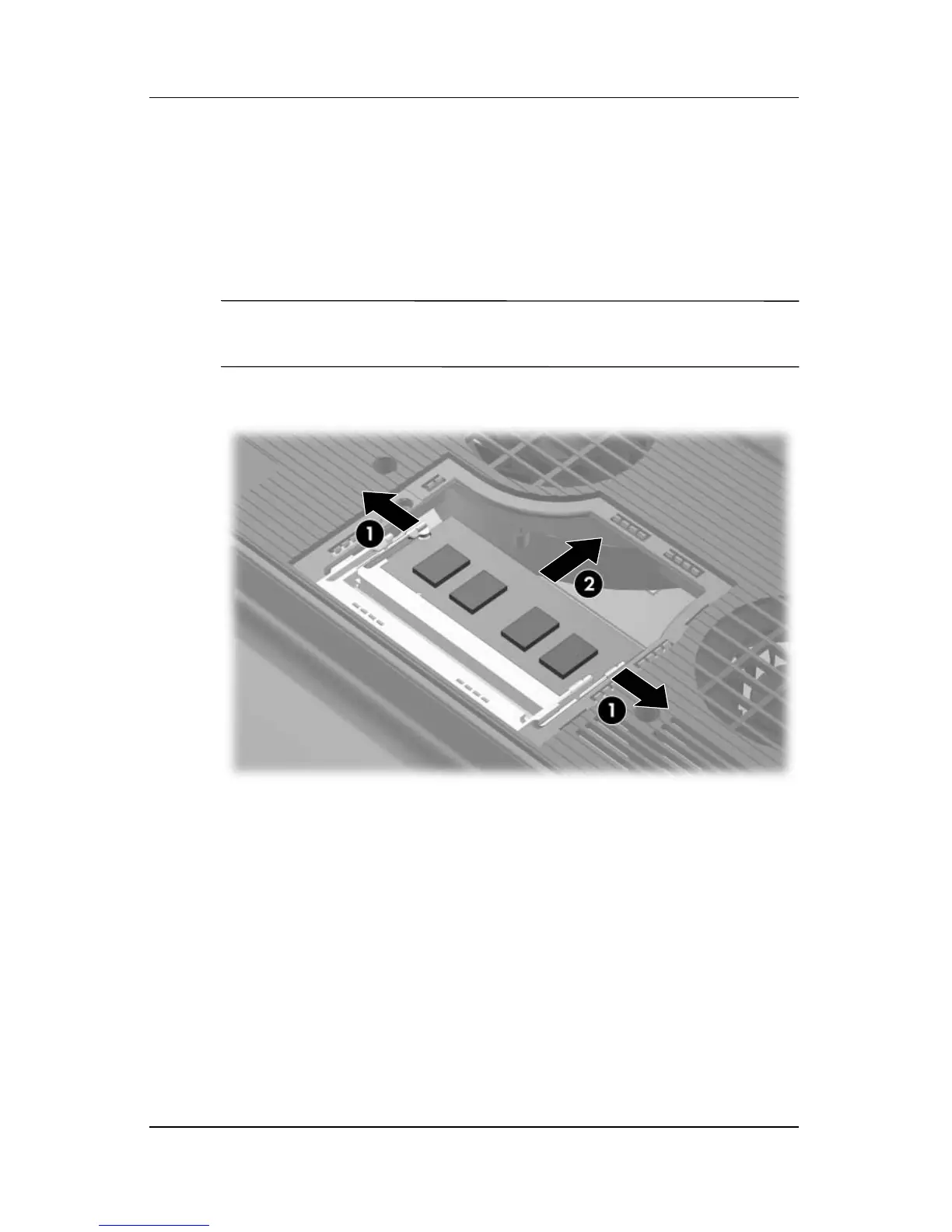

5. Spread the retaining tabs 1 on each side of the memory
module socket to release the memory module board. (The
back edge side of the board rises away from the notebook.)
6. Slide the module away from the socket at an angle 2.
7. Remove the memory module board.
ā
Note that memory modules are slotted to prevent incorrect
installation into the memory module socket.
Removing the Memory Module
Reverse the above procedure to install a memory module.
