Installing Additional Memory
The workstation supports Error Checking and Correcting (ECC) Direct
Rambus inline memory modules (RIMMs). Additional RIMMs are
available to upgrade the memory. A maximum of 32 count devices is
supported on each Rambus channel. Continuity RIMMs (CRIMMs)
must populate any empty slots.
Removing a Memory Board
To remove a memory board to install additional memory:
1. Turn off the workstation and disconnect the power cord from the
grounded AC outlet and the back of the workstation.
2. Remove the workstation access panel and locate the memory board
that is connected to the workstation system board.
3. Loosen the thumbscrew on the back of the metal slot cover that
secures the memory board to the expansion slot.

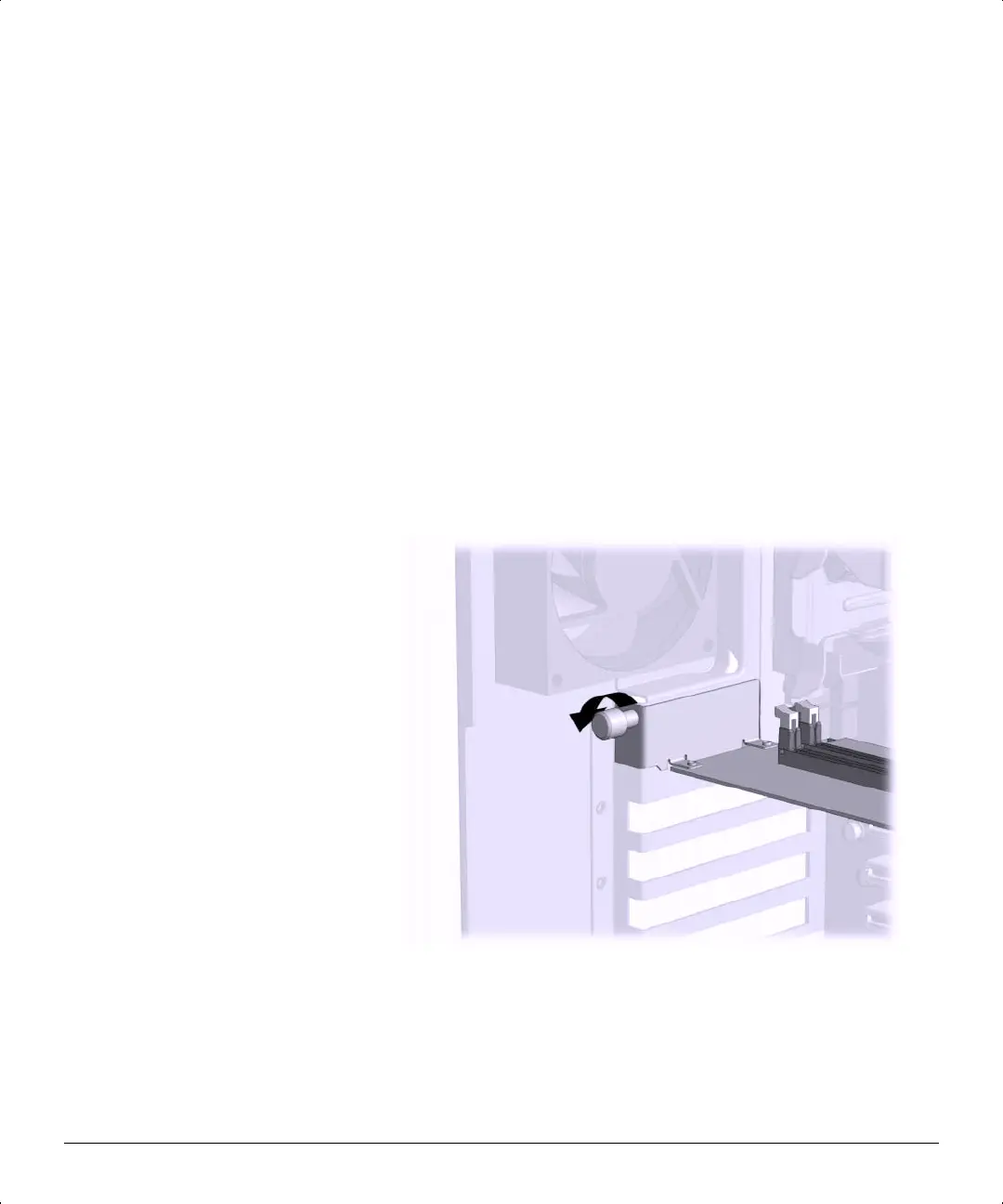

Loosening the thumbscrew on the back of the metal slot cover
4. To release the memory board, press downward on the plastic
release latch that holds the memory board in the memory board
retainer.
5. Carefully remove the memory board from the memory board
connector.
