Removing RIMMs
To remove a memory module from a RIMM slot, reverse the previous
procedure.
Installing a Memory Board
To install a memory board:
1. Place the memory board into the memory board connector slot.
When installing a memory board, press firmly on the board so that
the whole connector seats properly in the memory board slot.
✎
After you install the memory board, make sure the board is
engaged with the card guide.
2. Tighten the thumbscrew on the memory board metal slot cover.
3. Replace the workstation access panel.
4. Reconnect external devices. Plug the power cord back into the
grounded AC outlet.

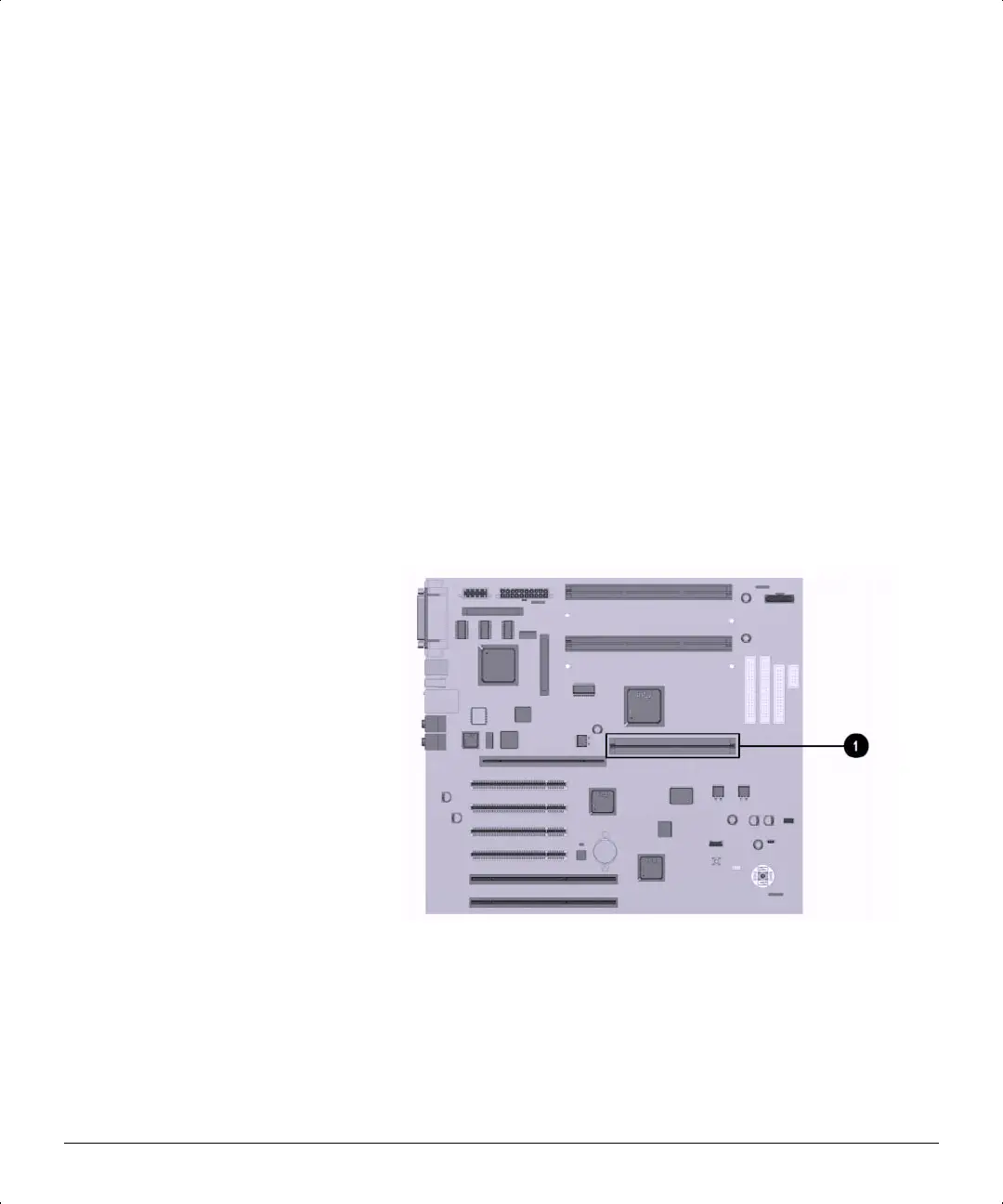

Locating the memory board connector
1
on the system board
