HP CQ60 Series User Manual

Recycling 11 – 2

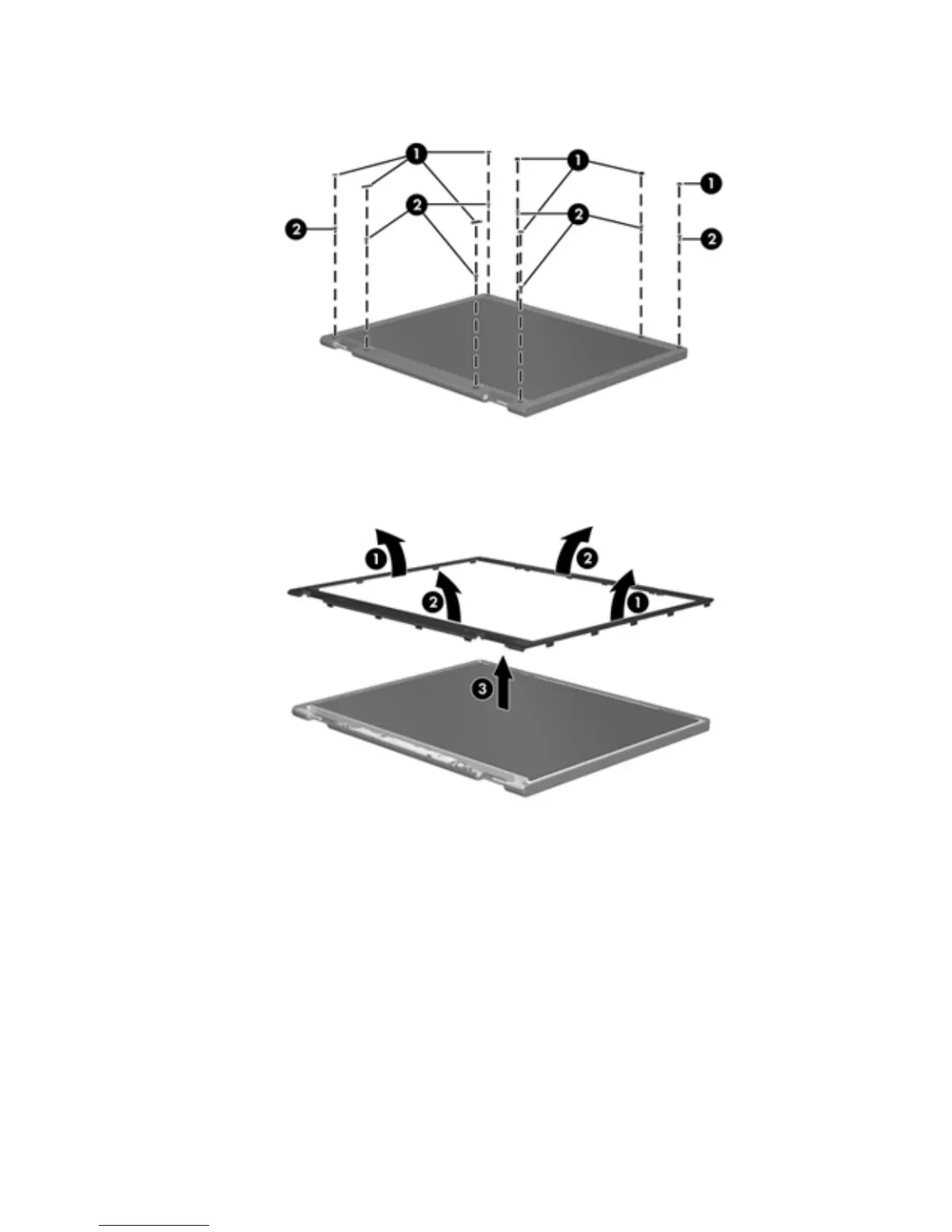

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel
until the bezel disengages from the display assembly.
3. Remove the display bezel 3.

HP CQ60 Series Specifications

General

Audio	Altec Lansing speakers
RAM	Up to 4GB DDR2
Storage	320GB HDD
Display	15.6" diagonal High-Definition HP BrightView Widescreen Display
Graphics	Integrated Intel Graphics Media Accelerator 4500M
Operating System	Windows Vista
Optical Drive	DVD±RW DL LightScribe
Battery	6-cell Lithium-Ion
Chipset	Intel GL40 Express
Wireless	802.11b/g
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x Headphone, 1 x Microphone
Card Reader	5-in-1 integrated Digital Media Reader
Webcam	Integrated webcam
Networking	10/100 Ethernet
Weight	2.7 kg (5.95 lbs)
