HP CQ60 Series User Manual

Recycling 11 – 4

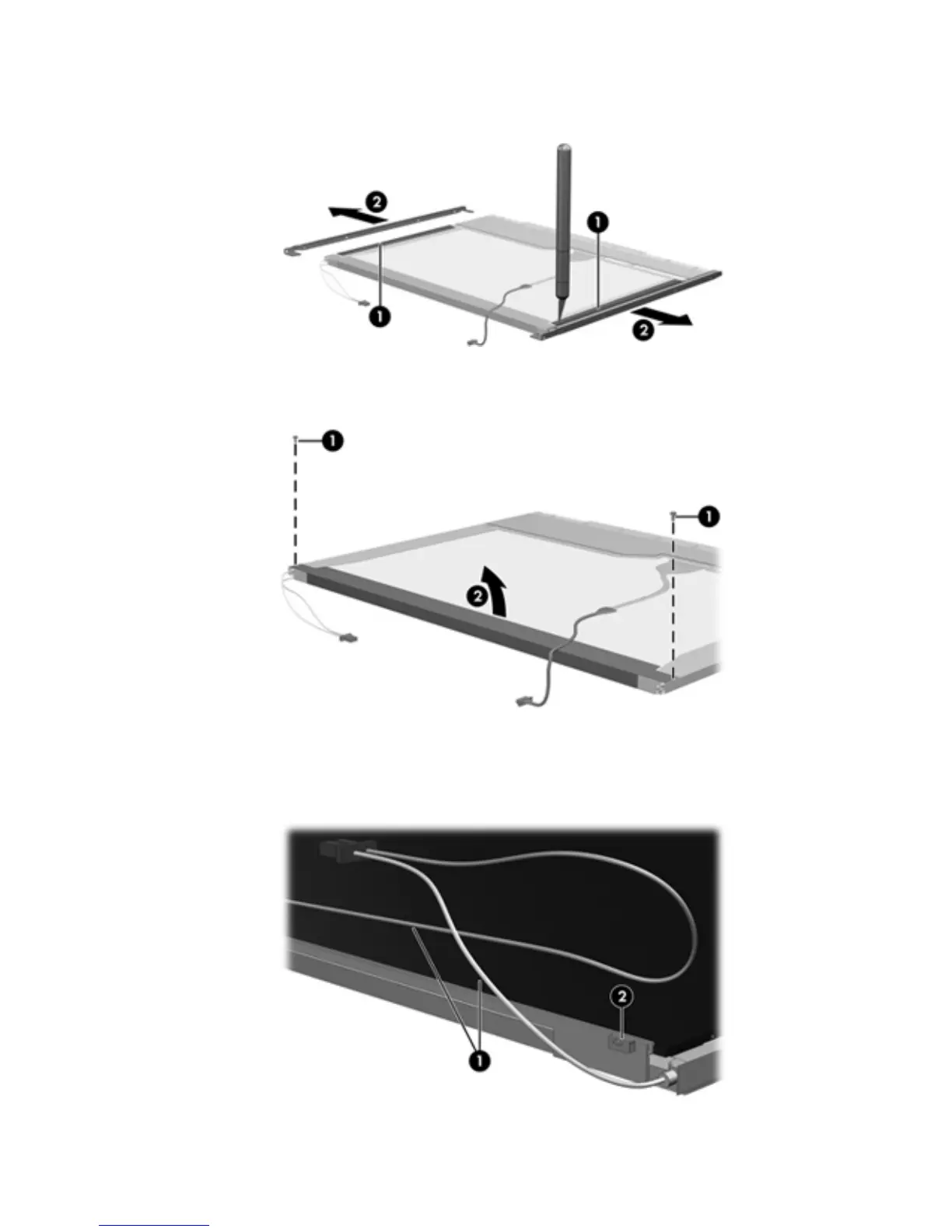

9. Use a sharp-edged tool to cut the tape 1 that secures the sides of the display panel to the display panel frame.
10. Remove the display panel frame 2 from the display panel.
11. Remove the screws 1 that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover 2 and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
15. Remove the backlight cables 1 from the clip 2 in the display panel.

HP CQ60 Series Specifications

General

Audio	Altec Lansing speakers
RAM	Up to 4GB DDR2
Storage	320GB HDD
Display	15.6" diagonal High-Definition HP BrightView Widescreen Display
Graphics	Integrated Intel Graphics Media Accelerator 4500M
Operating System	Windows Vista
Optical Drive	DVD±RW DL LightScribe
Battery	6-cell Lithium-Ion
Chipset	Intel GL40 Express
Wireless	802.11b/g
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x Headphone, 1 x Microphone
Card Reader	5-in-1 integrated Digital Media Reader
Webcam	Integrated webcam
Networking	10/100 Ethernet
Weight	2.7 kg (5.95 lbs)
