Removal and replacement procedures 4–21
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.

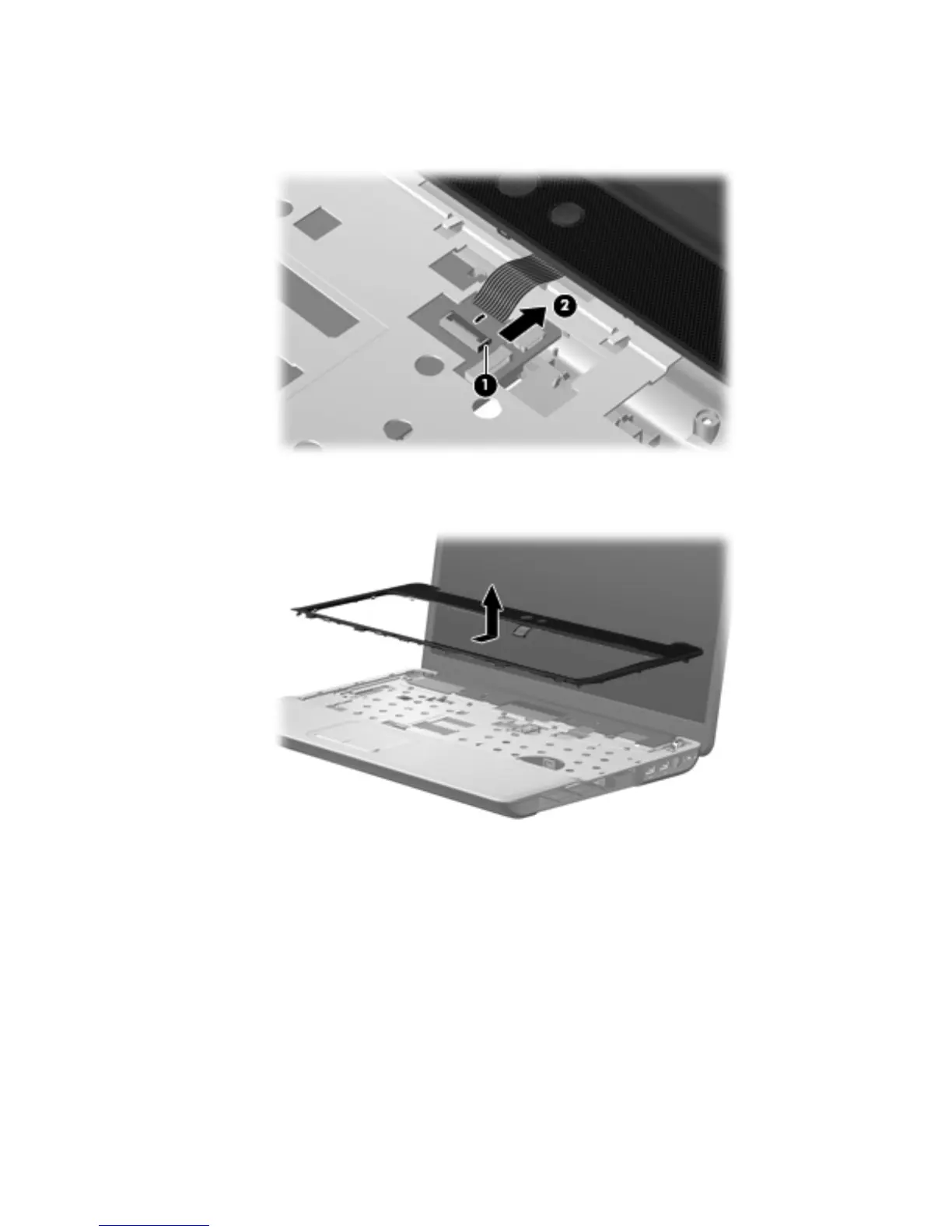

4. Release the ZIF connector 1 to which the power button board cable is attached, and disconnect the power
button board cable 2 from the system board.
5. Slide the keyboard cover toward the display panel until it disengages from the top cover, and then lift up to
remove the keyboard cover.
Reverse this procedure to install the keyboard cover.
