CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can

result in damage to the display assembly and other computer components.

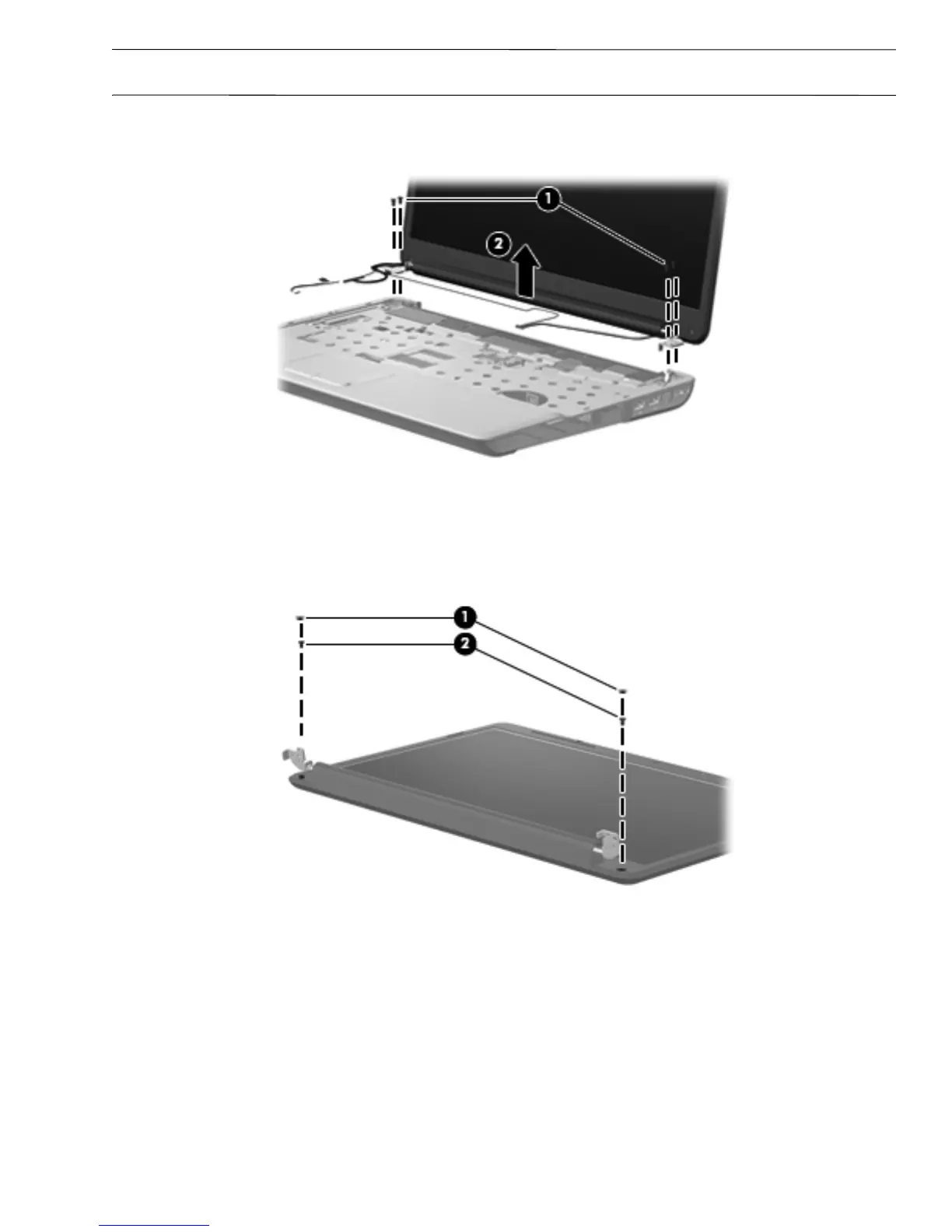

5. Remove the four Phillips PM2.5x9.0 screws 1 securing the display hinges to the computer.

6. Remove the display panel 2.

7. If it is necessary to replace the display bezel or any of the display assembly internal components, remove the

following screw covers and screws:

1 Two rubber screw covers on the display bezel bottom edge. The display rubber screw covers are included in

the Display Rubber Kit, spare part number 486584-001.

2 Two Phillips PM2.5x7.0 screws on the display bezel bottom edge.
