Removal and replacement procedures 4–27

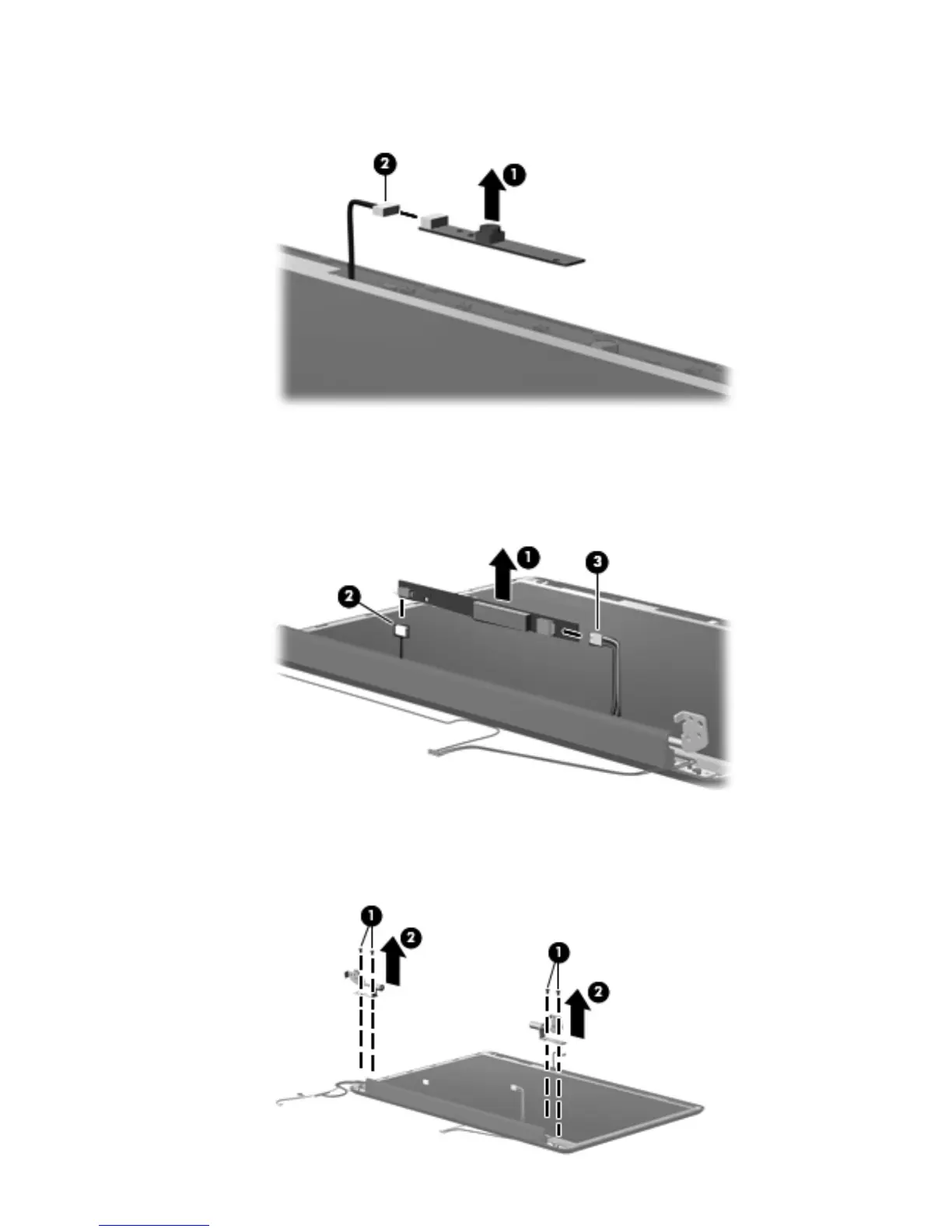

10. If it is necessary to replace the webcam module, release the webcam module 1 as far from the display
enclosure as the webcam module cable allows.
11. Disconnect the webcam module cable 2 from the webcam module, and remove the webcam module. The
webcam module is available using spare part number 488385-001.
12. If it is necessary to replace the display inverter, release the display inverter 1, located at the bottom edge of
the display assembly, from its mounting clips.
13. Disconnect the display panel cable 2 and the back light cable 3 from the display inverter, and remove the
display inverter from the display enclosure. The display inverter is available using spare part number
486556-001.
14. If it is necessary to replace the display hinges, remove the two Phillips PM2.5x6.0 screws 1 that secure each
hinge to the display enclosure.
15. Remove the display hinges 2. The display hinges are available in the Display Hinge Kit, spare part number
486558-001.
