Removal and replacement procedures 4–29

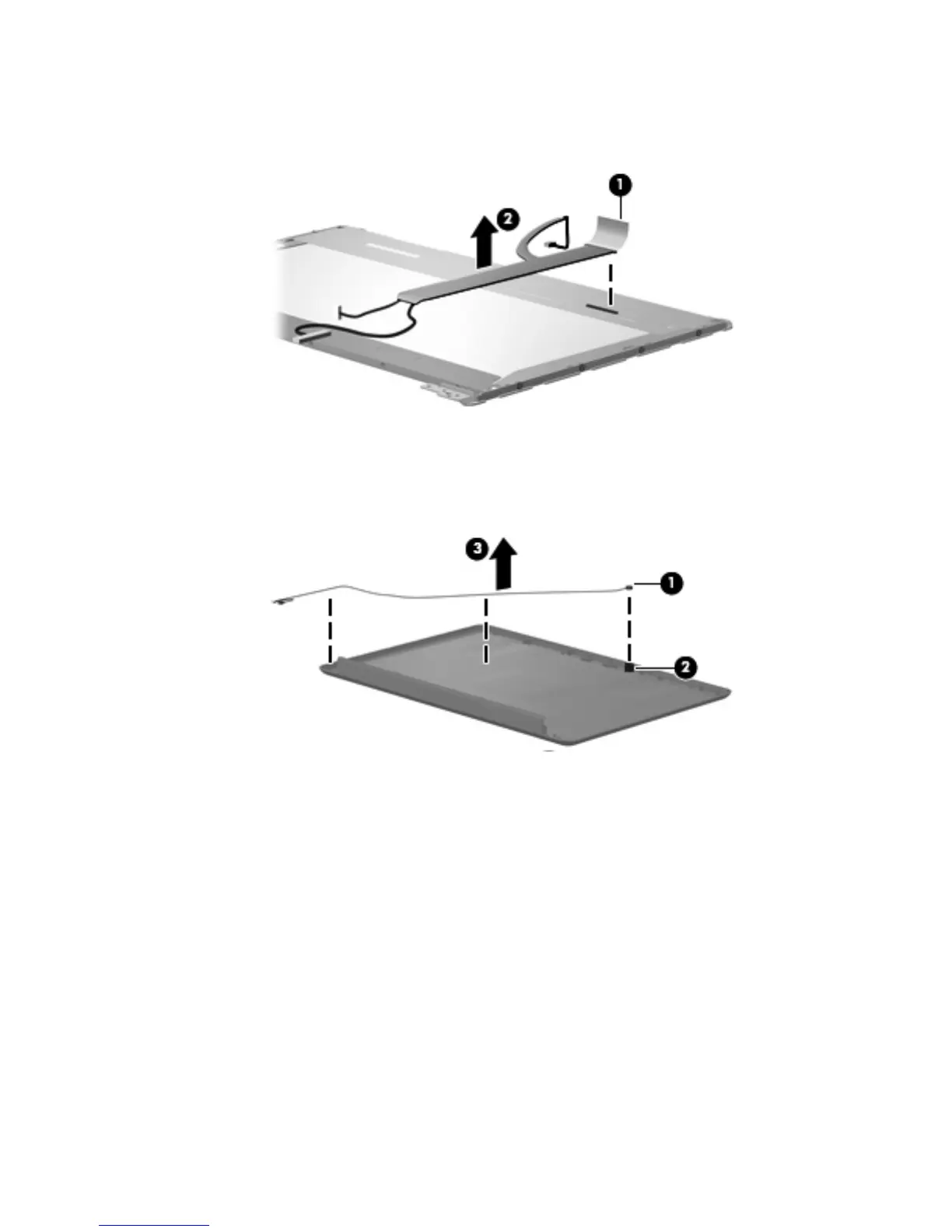

20. If it is necessary to replace the display panel cable, which is attached to the back of the display panel with clear
adhesive tape, remove the tape 1 to release the cable from its connector. The display panel cable includes the
camera module cable. The display panel cable with webcam cable is available using spare part number
496841-001.
21. Remove display panel cable 2.
22. If it is necessary to replace the microphone 1, release the microphone from its mounting clip 2 at the top of
the display enclosure.
23. Pull the microphone cable through the left hinge opening, and release the microphone cable from the foil
tab 3. The microphone with cable is available using spare part number 496840-001.
Reverse this procedure to reassemble and install the display assembly.

HP CQ60 Series Specifications

General

Audio	Altec Lansing speakers
RAM	Up to 4GB DDR2
Storage	320GB HDD
Display	15.6" diagonal High-Definition HP BrightView Widescreen Display
Graphics	Integrated Intel Graphics Media Accelerator 4500M
Operating System	Windows Vista
Optical Drive	DVD±RW DL LightScribe
Battery	6-cell Lithium-Ion
Chipset	Intel GL40 Express
Wireless	802.11b/g
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x Headphone, 1 x Microphone
Card Reader	5-in-1 integrated Digital Media Reader
Webcam	Integrated webcam
Networking	10/100 Ethernet
Weight	2.7 kg (5.95 lbs)
