HP CQ60 Series User Manual

Removal and replacement procedures 4–39
When replacing the system board, be sure that the following components are removed from the defective system
board and installed on the replacement system board:
■ RTC battery (see “RTC battery” on page 4-12)
■ Memory module (see “Memory module” on page 4-13)
■ WLAN module (see “WLAN module” on page 4-15)
■ Fan/heat sink assembly (see “Fan/heat sink assembly” on page 4-41)
■ Processor (see “Processor” on page 4-44)

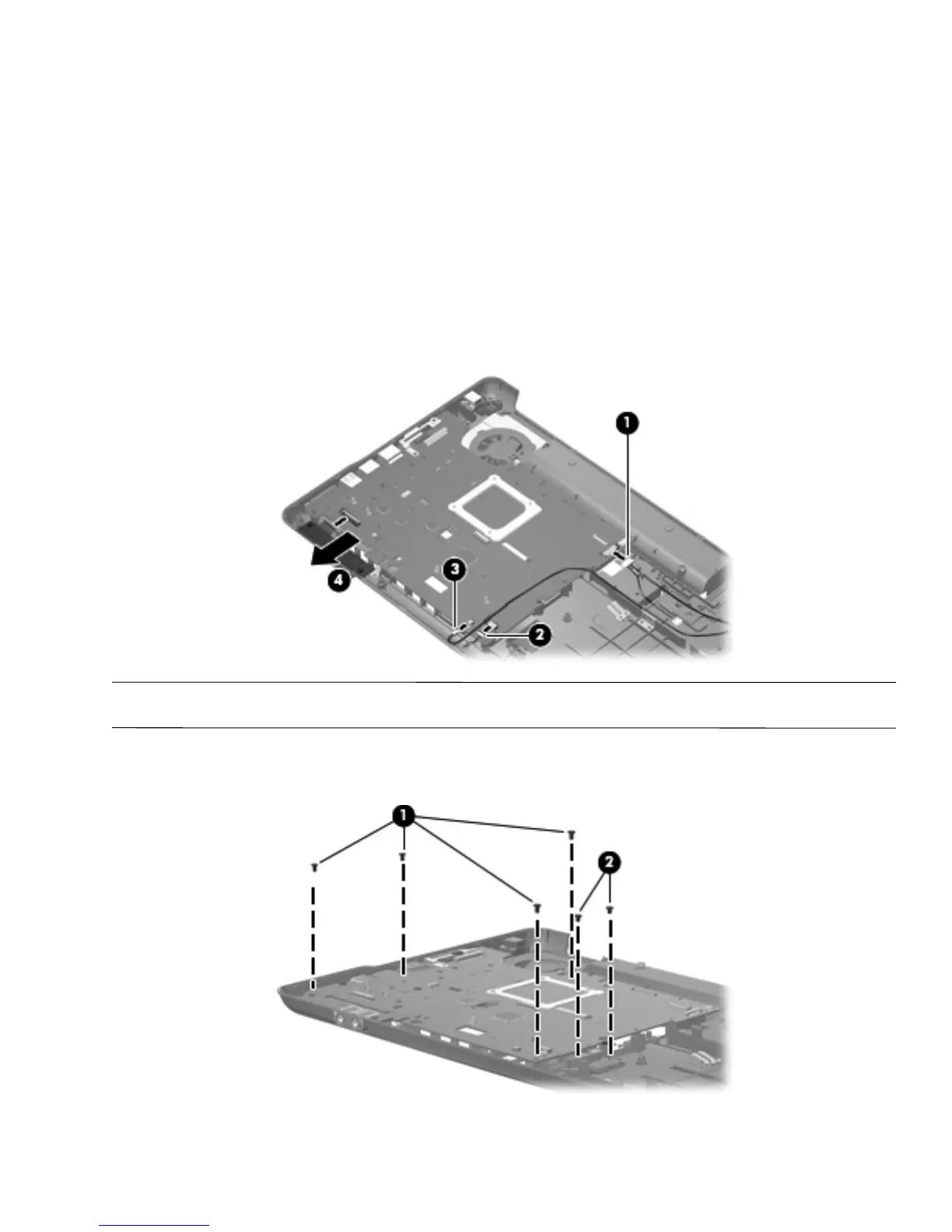

Remove the system board:
1. Disconnect the USB board cable 1 from its mounting clip in the base enclosure.
2. Disconnect the Bluetooth cable 2 from the system board.
3. Disconnect the RJ-11 cable 3 from the system board.
4. Disconnect the audio cable 4 from the system board.
Ä
CAUTION: Do not attempt to disconnect the optical extension board before removing the system board. Otherwise, you will
damage the locator pin on the optical extension board.
5. Remove the four Phillips PM2.5x6.0 screws 1 that secure the system board
6. Remove the two Phillips PM2.5x5.0 screws 2 that secure the optical extension board.

HP CQ60 Series Specifications

General

Audio	Altec Lansing speakers
RAM	Up to 4GB DDR2
Storage	320GB HDD
Display	15.6" diagonal High-Definition HP BrightView Widescreen Display
Graphics	Integrated Intel Graphics Media Accelerator 4500M
Operating System	Windows Vista
Optical Drive	DVD±RW DL LightScribe
Battery	6-cell Lithium-Ion
Chipset	Intel GL40 Express
Wireless	802.11b/g
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x Headphone, 1 x Microphone
Card Reader	5-in-1 integrated Digital Media Reader
Webcam	Integrated webcam
Networking	10/100 Ethernet
Weight	2.7 kg (5.95 lbs)
