HP D Series

1-7
D Class System Memory Upgrade
Memory Installation Procedure

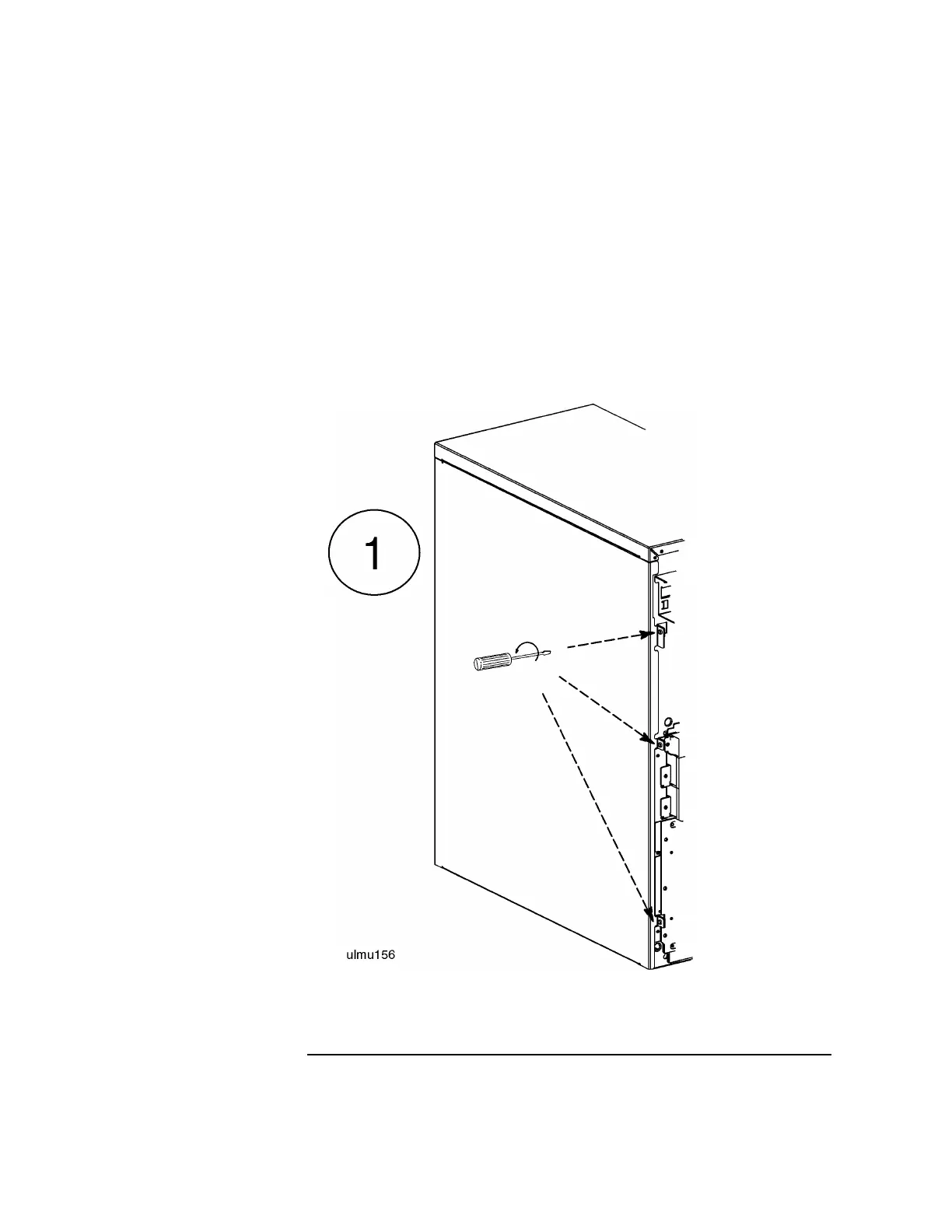

D. Remove the
Side Panel
1. Loosen three captive side panel screws with a #15 Torx driver.
2. Grasp the front edge of the side panel and swing it away from the system
cabinet.
3. Remove the panel by lifting it up so that its four hinge tabs come out of the slots
at the rear of the cabinet.
4. Carefully set the panel aside.
