1-17
D Class System Memory Upgrade
Memory Installation Procedure
Memory Load
Order for Models
D270/D370,
D280/380, and
D390
Pairs of DIMMs or SIMMs, of like size, must be loaded in the proper load order.
The first and largest capacity modules starting in slots 0A and 0B, then slots 1A and
1B, and so on, ending with slots 5A and 5B (see Load Order in the figure below).
Follow the memory size, orientation, and pairing rules listed on page 12.

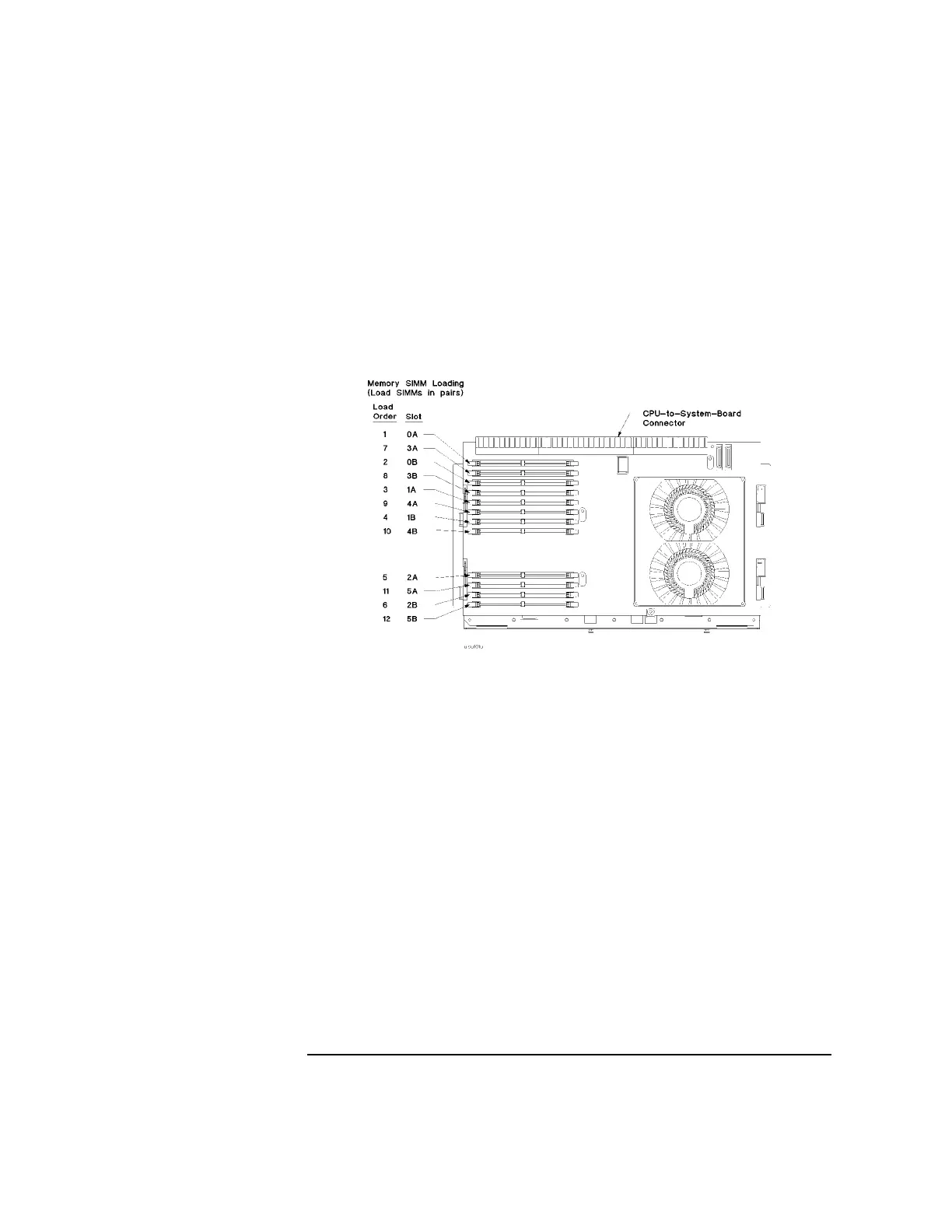

Memory Module Load Order for Models D270/370 and D280/D380
