11. Slide the carrier back and remove the hard drive.

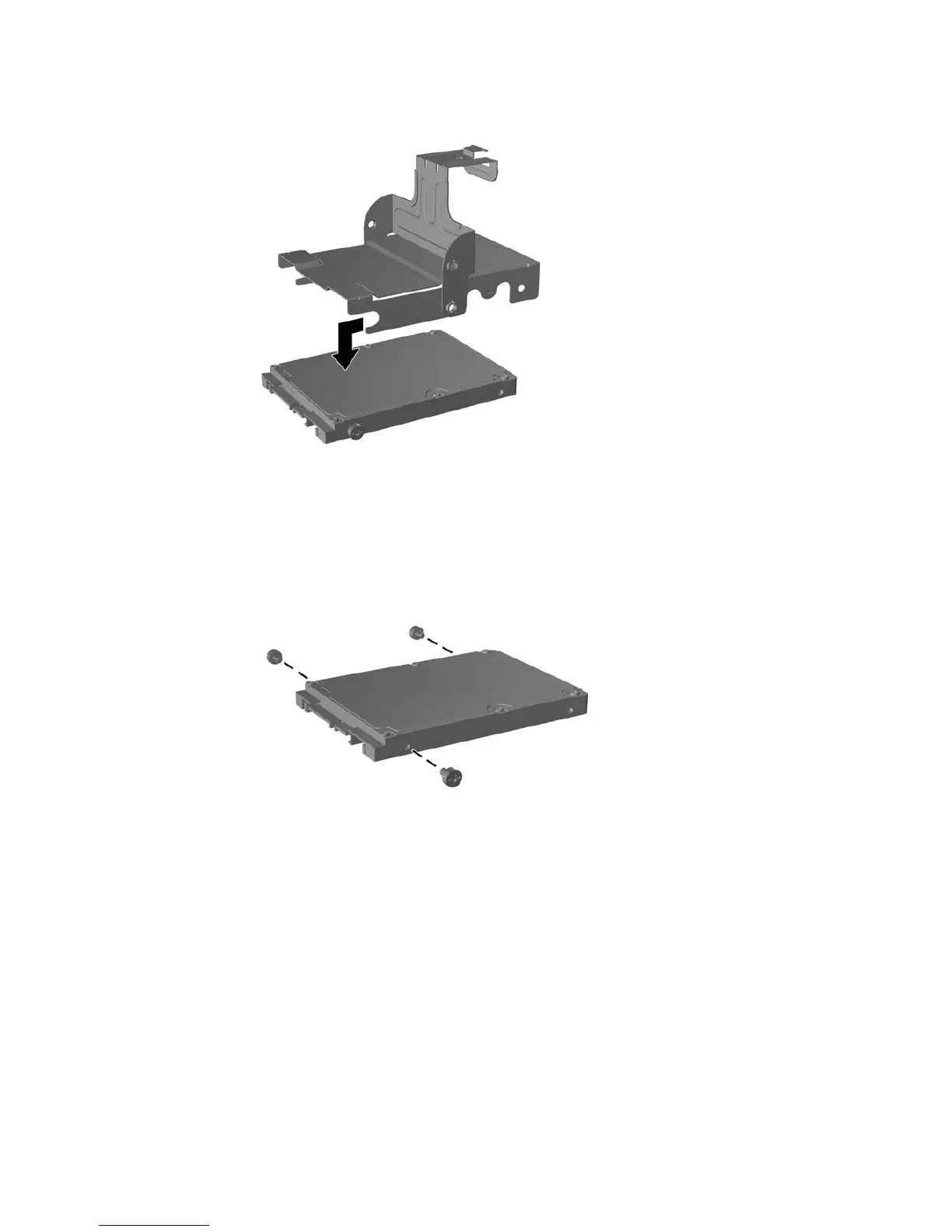

Figure 2-12 Removing the Hard Drive
12. Transfer the three remaining guide screws (two on the right and one on the rear left) from the old
drive to the new drive.
Figure 2-13 Transferring the Guide Screws
ENWW Upgrading the Hard Drive 21
