HP dc7900 series

Replacing the Computer Access Panel
1. Align the tabs on the panel with the slots on the chassis then slide the panel towards the rear of
the chassis until it stops (1).
2. Tighten the thumbscrew to secure the access panel (2).

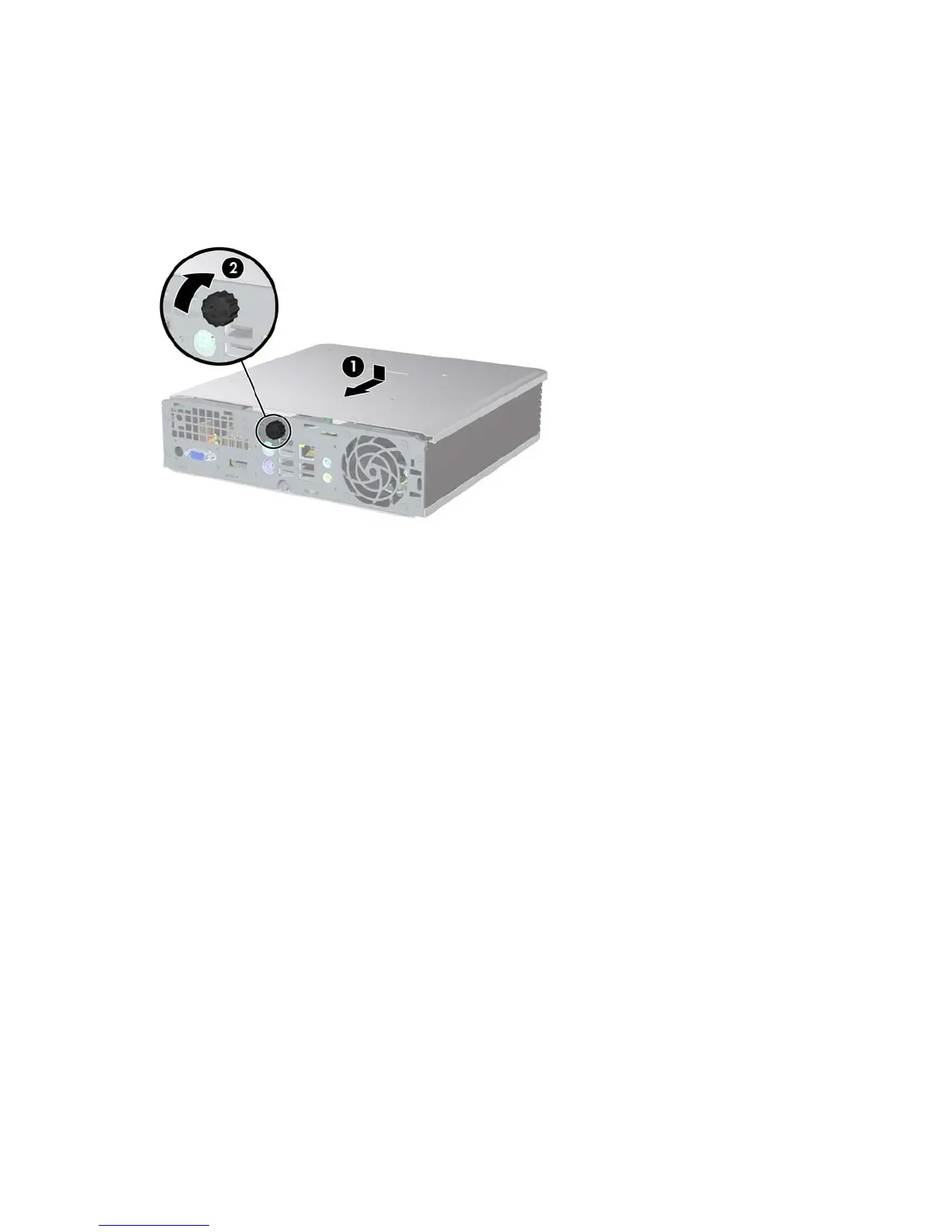

Figure 2-3 Replacing the Computer Access Panel
10 Chapter 2 Hardware Upgrades ENWW
