220 Chapter 4 Service Tests, Utilities & Calibrations
Tests, Utilities & Calibrations
5.6.2 Primer Calibration
Description
The purpose of this Service Calibration is to find the optimum position of the Primer Assembly with respect
to the Carriage.
The calibration is a visual procedure so you will have to remove the Right Hand cover before starting.
Procedure
1. Go to Service Menu >5. Service Calibration Menu>5.6 Carriage Menu>5.6.2 Primer Calibration.
2. Remove the Right Cover ⇒ page 319).
3. Block the Printhead Cleaning Cartridge door switch in the closed position.

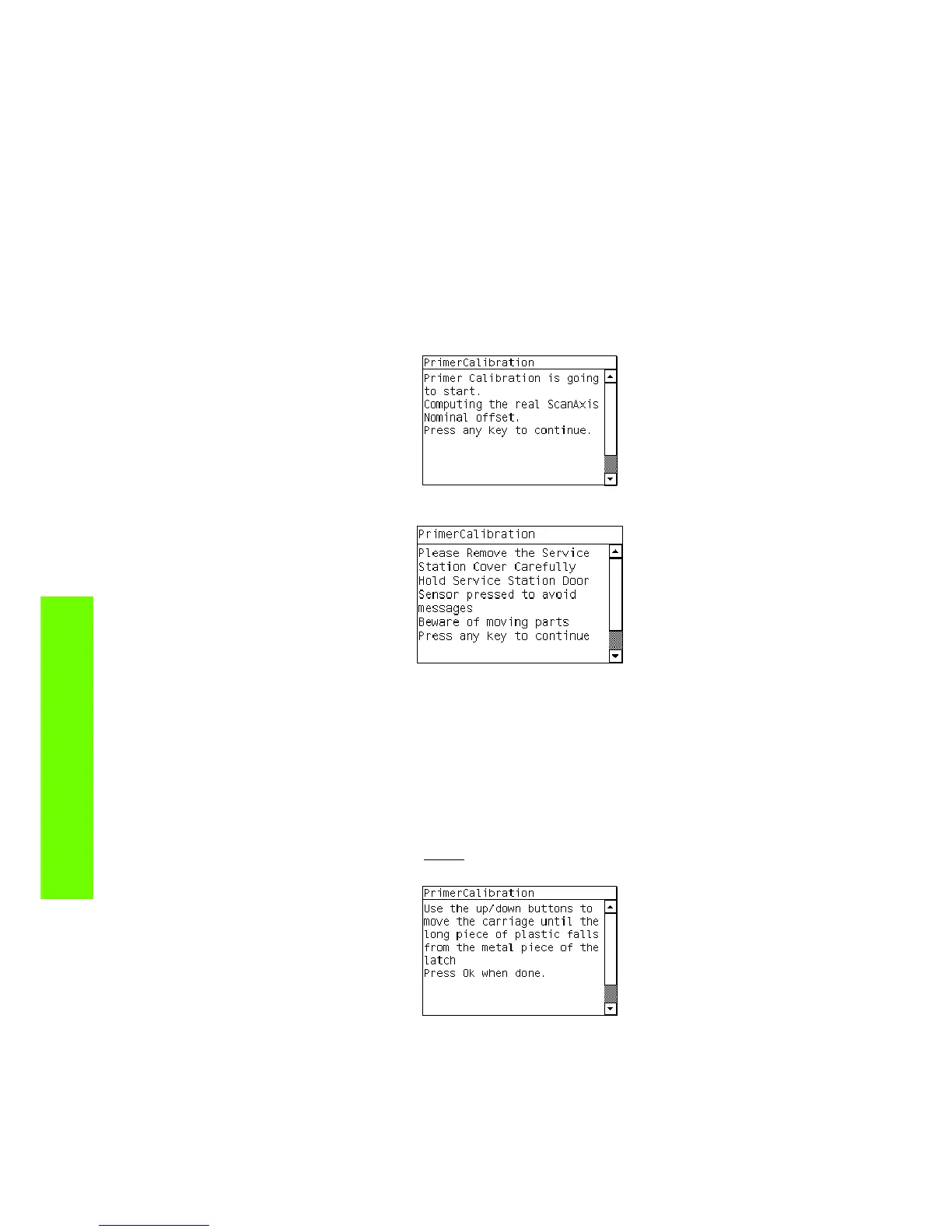

4. When the following message displays on the front panel, press any key to continue.
5. The front panel displays the following message.
6. The calibration process starts and front panel shows the following messages:
• Homing Primer.
• Uncapping SVS.
• Homing Carriage.
• Computing the Left Scan-Axis Offset.
7. Once the Left Scan-Axis Offset has been calculated the Front Panel prompts you use the Up/Down
keys to move the carriage until the RIGHT
edge of the Left Alignment Mark on the Carriage Cover is
perfectly aligned with the Primer positioning indicator.
