Service Menu 221
Tests, Utilities & Calibrations

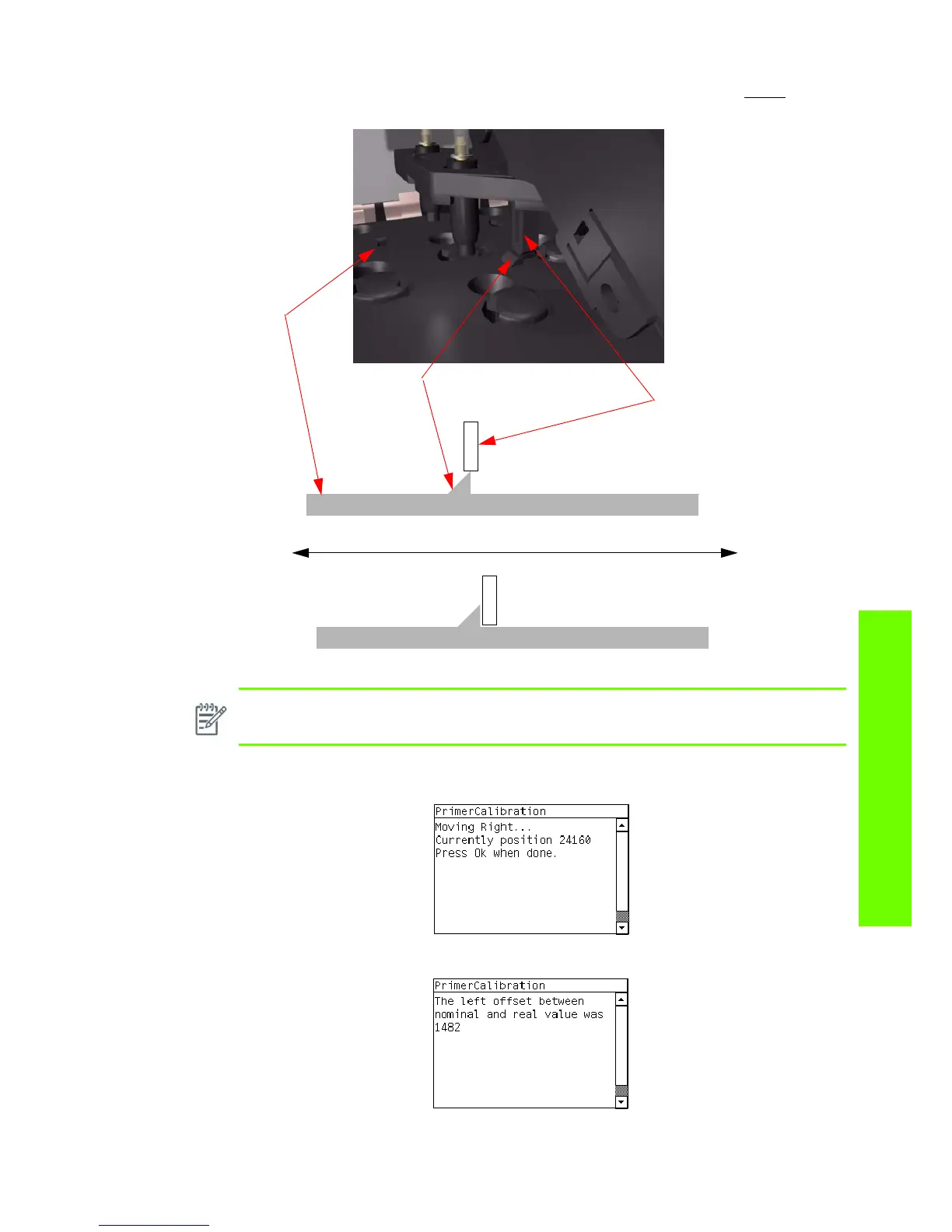

8. Use the Up (move left) and Down (move right) keys to move the Carriage until the RIGHT edge of
the Left Alignment Mark is correctly aligned with the Primer Positioning Indicator and press ENTER.
While the Carriage is moving the Front Panel shows the actual position and the direction of
movement and prompts you to press ENTER when done.
9. The Front Panel shows the actual left offset value and the system calculates the Fight Scan-Axis Offset.
NOTE: To more easily detect the exact position while aligning the Carriage to the Primer it is
a good idea to lightly press down on the Primer while you are moving the Carriage.
