229
Print Quality

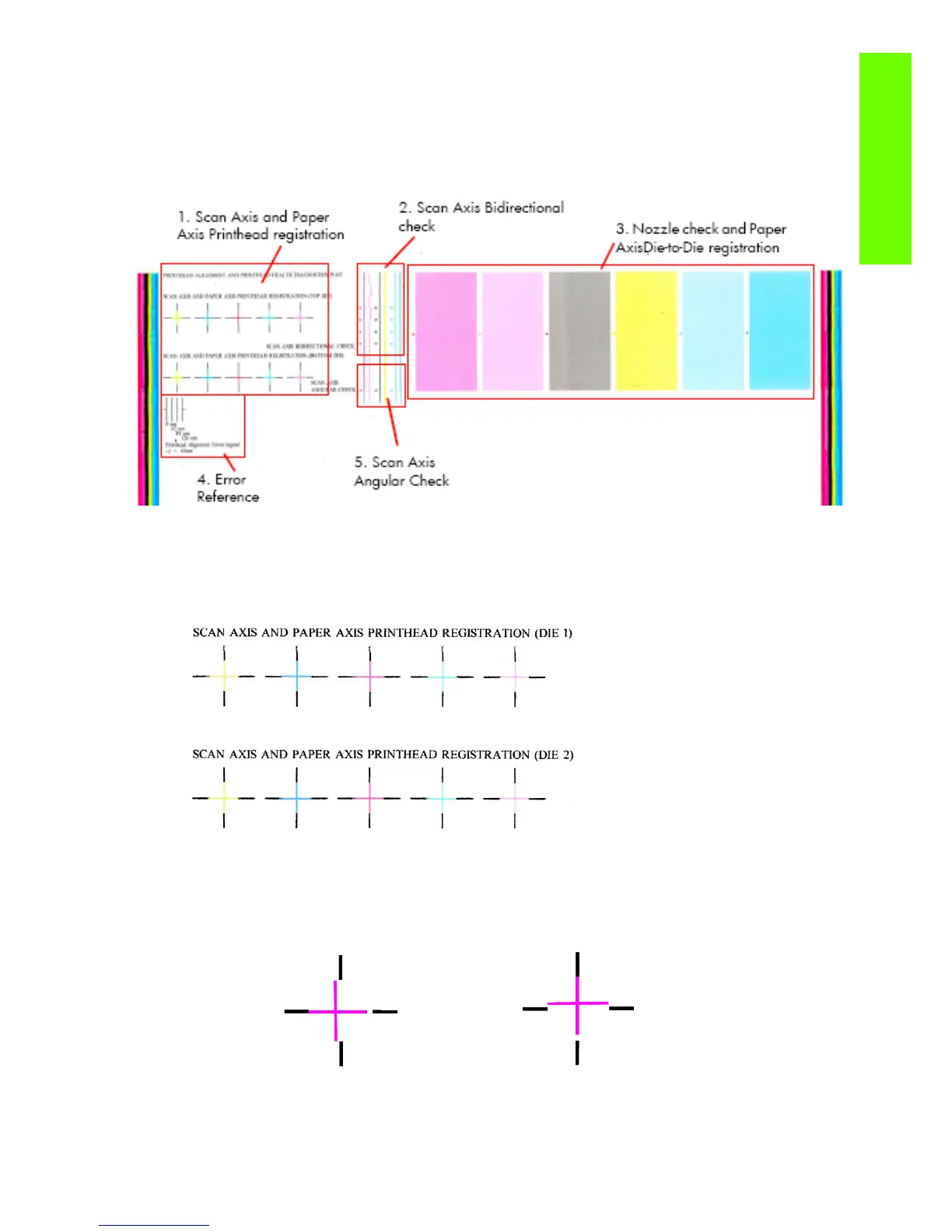

2.2.1 Printhead Alignment Test Plot
To print this test plot go to Menu List>2. Image Quality Plots>2.2 PH Alignment Menu>2.2.1 Test Plot.
This test is designed to check the accuracy of the current printhead alignment. The plot consists of five
different areas:
1. Scan Axis and Paper Axis Printhead registration
The colored crosses of the plot should show lines perfectly aligned with each other, as shown below.
The die 1 and die 2 of the black printhead is used as a reference to which the rest of the pens are
compared. The substrate does not move while the pattern is being printed.
If the Printer is experiencing horizontal misalignment problems, the Alignment Test will print the lines in
the orientation shown below (A). If the Printer is experiencing vertical misalignment problems, the
Alignment Test will print the lines in the orientation shown below (B):
