5. Slide the new roll onto the spindle. Make sure the paper type is oriented as shown. If it is not, remove
the roll, turn it 180 degrees and slide it back on to the spindle. There are labels on the spindle showing
the correct orientation.
NOTE: From the front of the printer, the blue stopper is inserted into the left-side holder.
Ensure both ends of the roll are as close to the spindle stops as possible.

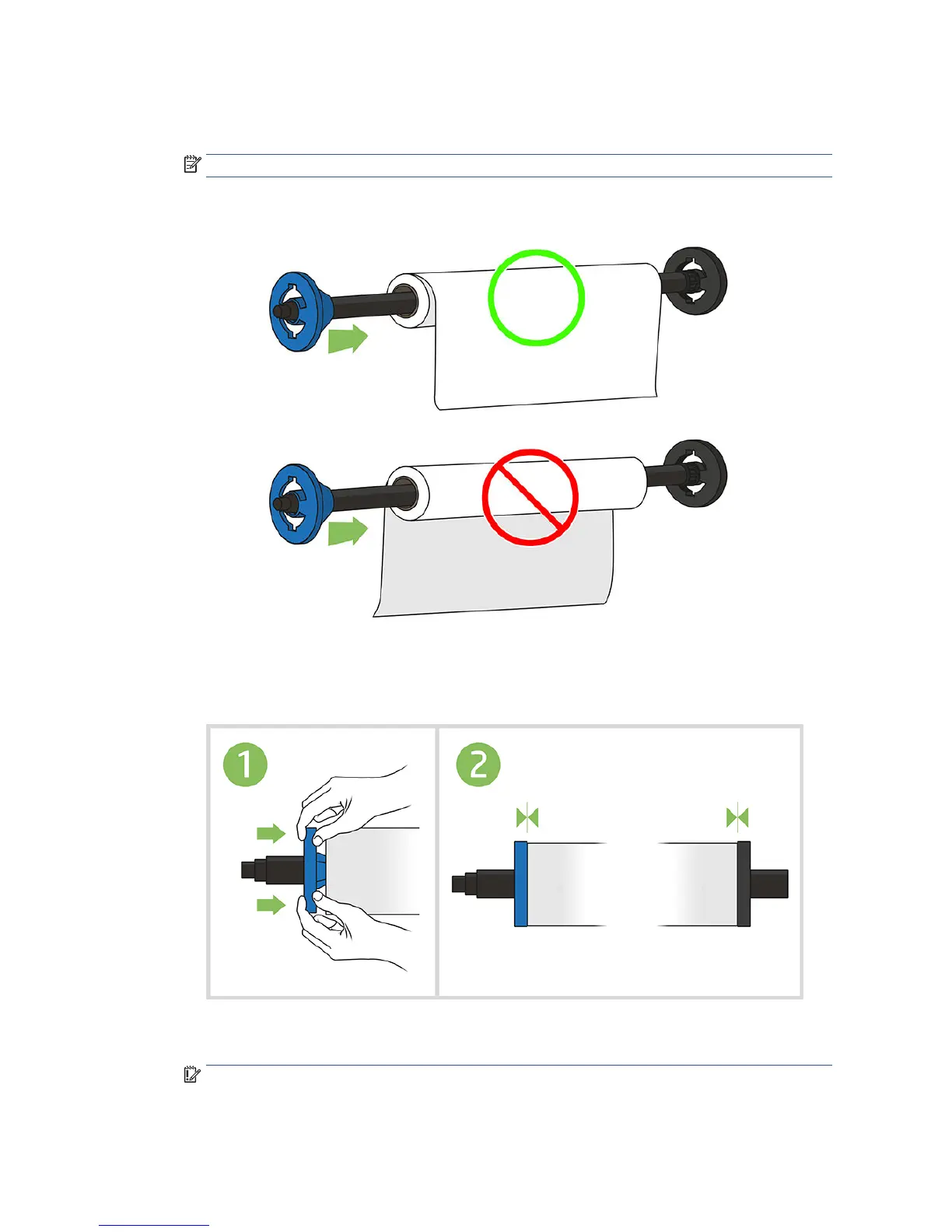

6. Put the blue paper stop on to the open end of the spindle, and push it towards the end of the roll. The
roll cannot exceed the blue hub as illustrated below.
7. Ensure the blue paper stop is pushed in as far as it goes. Check that there is no space between the roll
and the stops at both ends.
IMPORTANT: Make sure that the roll does not exceed the blue hub.
36 Chapter 5 Paper handling ENWW
