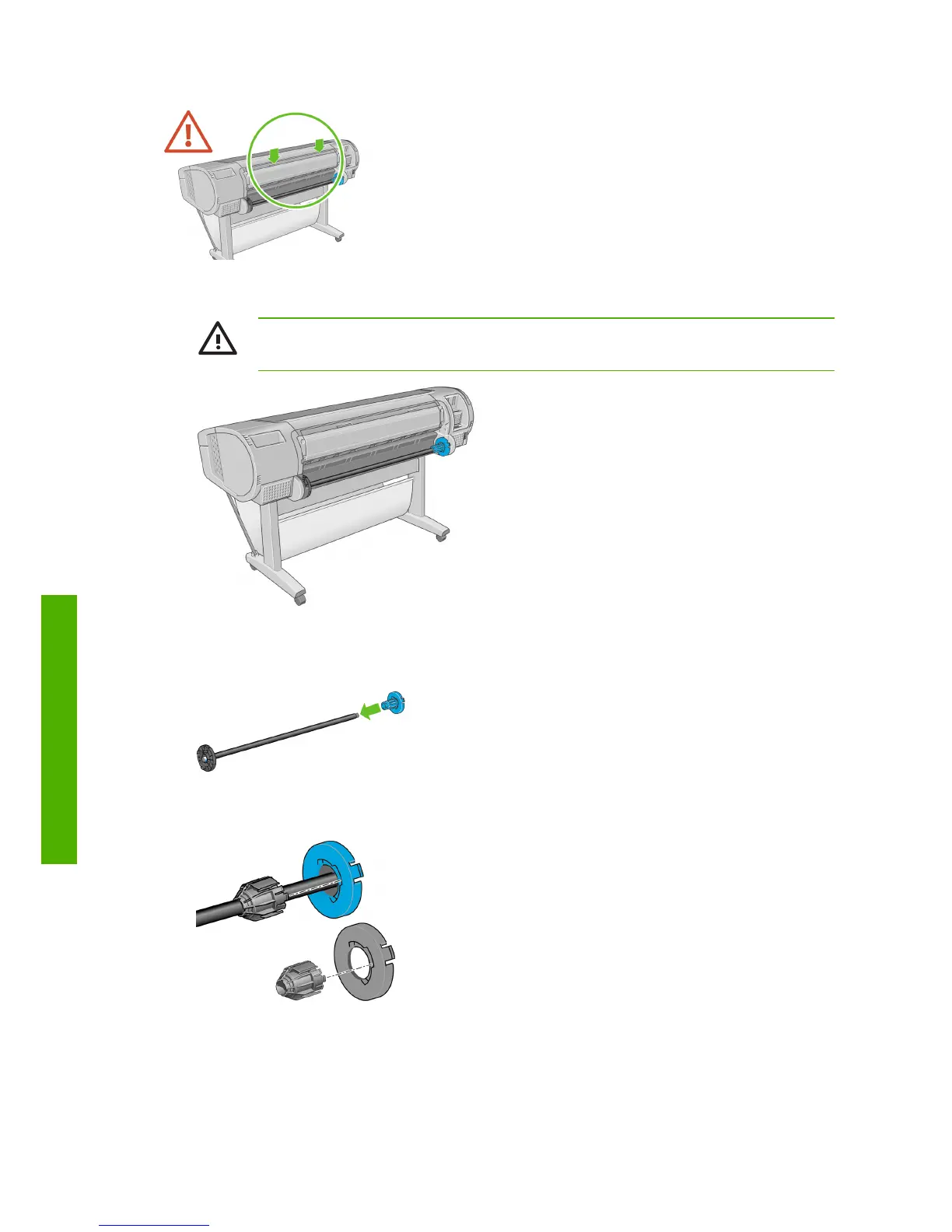

1. Remove the right-hand end of the spindle from the printer, then the other end.
WARNING! Do not insert your fingers into the spindle supports during the removal
process.
2. The spindle has a stop at each end to keep the roll in position. The blue stop can be removed to mount
a new roll; it slides along the spindle to hold rolls of different widths. Remove the blue paper stop (1)
from the end of the spindle.
3. If your roll has a three-inch cardboard core, ensure that the core adaptors supplied with the printer
have been installed.
4. If the roll is long; rest the spindle horizontally on a table and load the roll on the table.
10 Chapter 3 Paper handling ENWW
Paper handling
