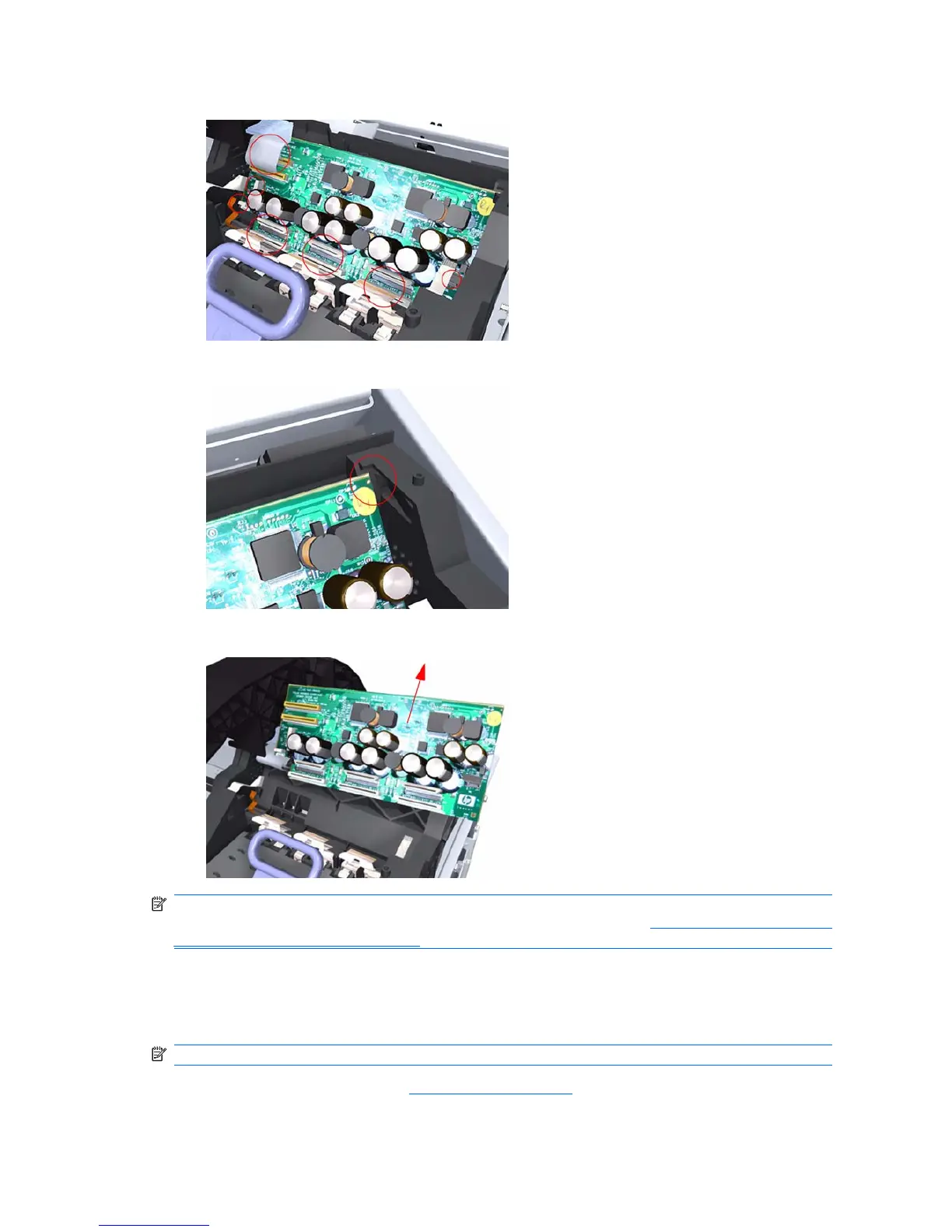

16. Disconnect the ten ribbon cables from the Carriage Assembly PCB.
17. Press the locking clip to release the Carriage Assembly PCB from the carriage.
18. Remove the Carriage PCA from the carriage.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Right Ink Supply Station
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
280 Chapter 6 Removal and Installation ENWW
