HP DesignJet Z5200 series - Page 115

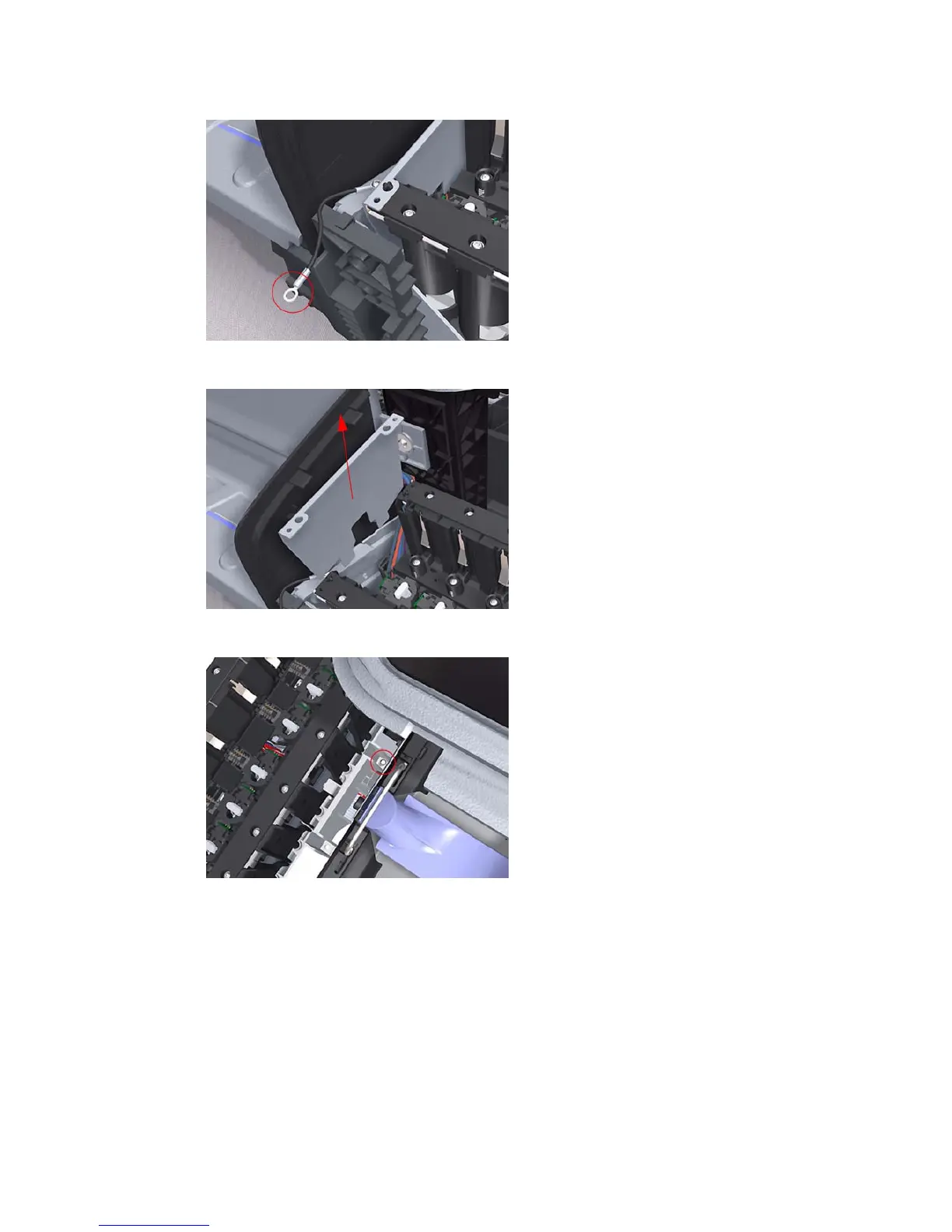

5. Remove the Right Ink Supply Station bonding cable.
6. Remove the Right Side Plate of the Right Ink Supply Station.
7. Remove the T-15 screw that secures the Right Ink Supply Station to the printer.
282 Chapter 6 Removal and Installation ENWW
