HP DesignJet Z5200 series

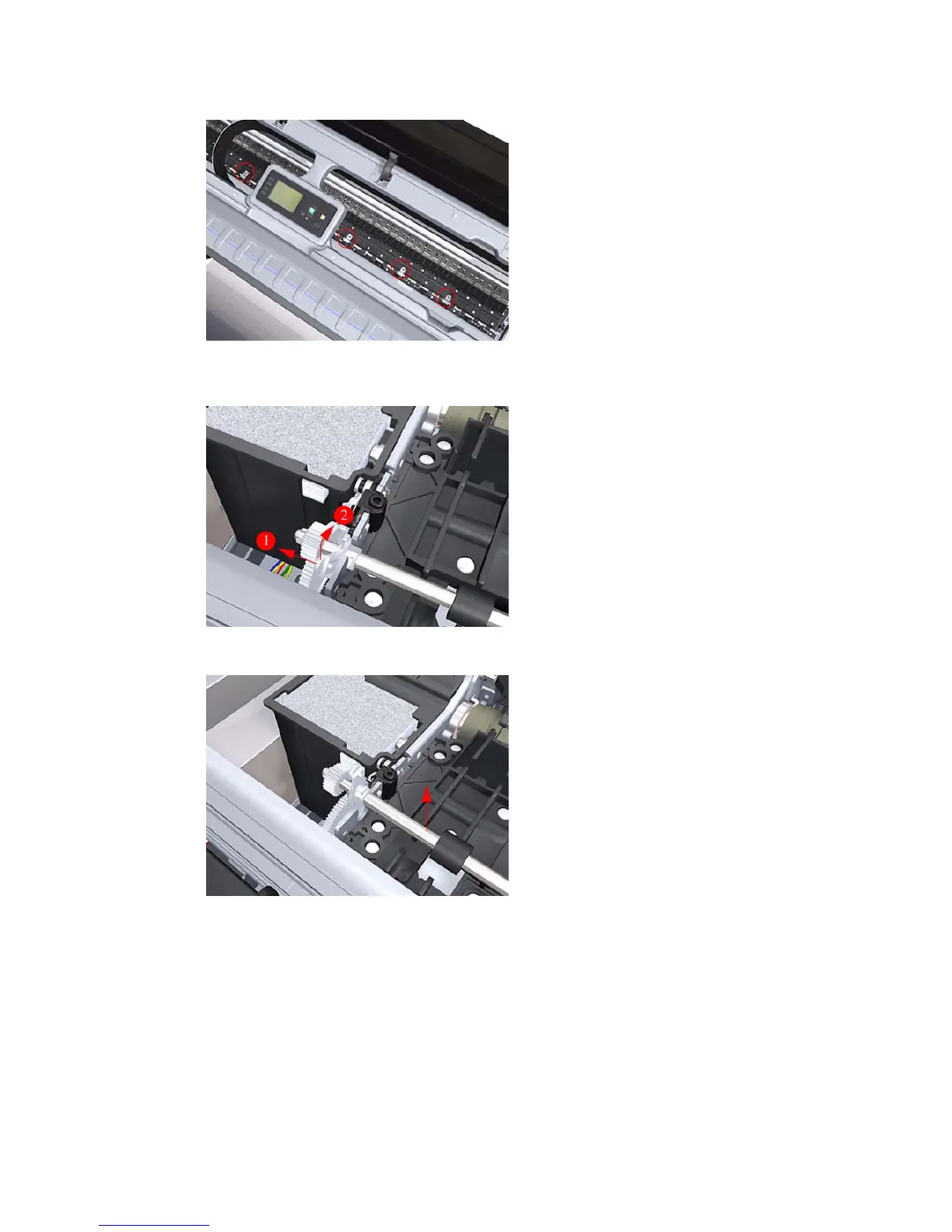

5. Repeat steps 2 to 4 to remove the remaining five attachment clamps.
6. Use a flat bladed screwdriver to unclip the left Print Zone Overdrive retaining clip and rotate the
clip vertically.
7. Carefully lift the left Print Zone Overdrive enough 10 mm) so you can slide it to the left.
304 Chapter 6 Removal and Installation ENWW
