NOTE: Switch off the printer and remove the power cable.

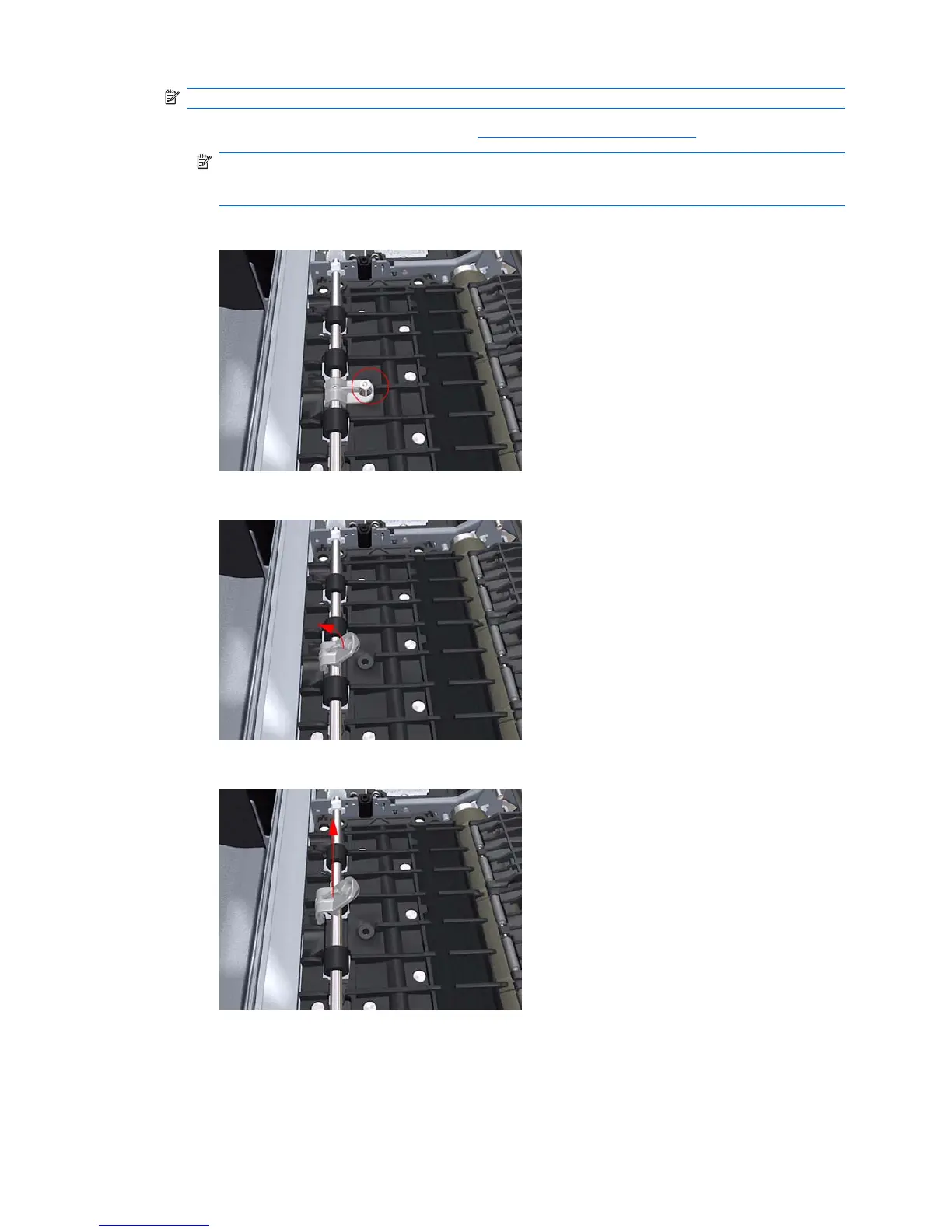

1. Remove the Starwheel Assembly (refer Starwheel Assembly on page 301).
NOTE: The Print Zone Overdrive is in two sections (left and right). This procedure describes the
removal of both of the sections. If you only want to remove one of the sections skip the steps for
the other section.
2. Remove one T-15 screw that secures the left clamp of the Print Zone Overdrive to the Platen.
3. Lift the attachment clamp vertically to release it from the Platen.
4. Remove the clamp.
