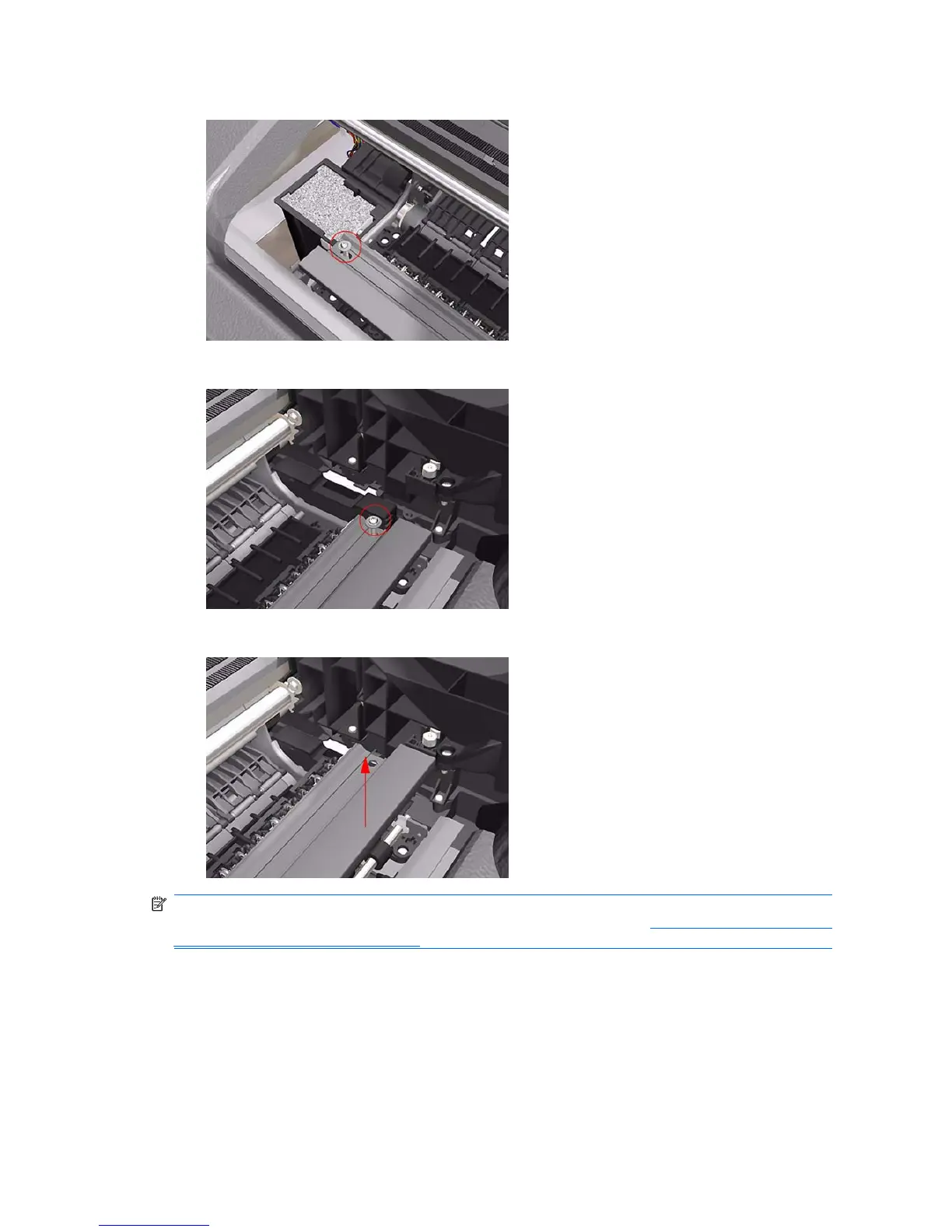

2. Remove one T-15 screw that secures the Starwheel Assembly to the Printer.
3. Remove one T-15 screw that secures the Starwheel Assembly to the Printer.
4. Carefully lift the Starwheel Assembly out of the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Print Zone Overdrive
Removal
302 Chapter 6 Removal and Installation ENWW
