5. Disconnect the Encoder Sensor connector.

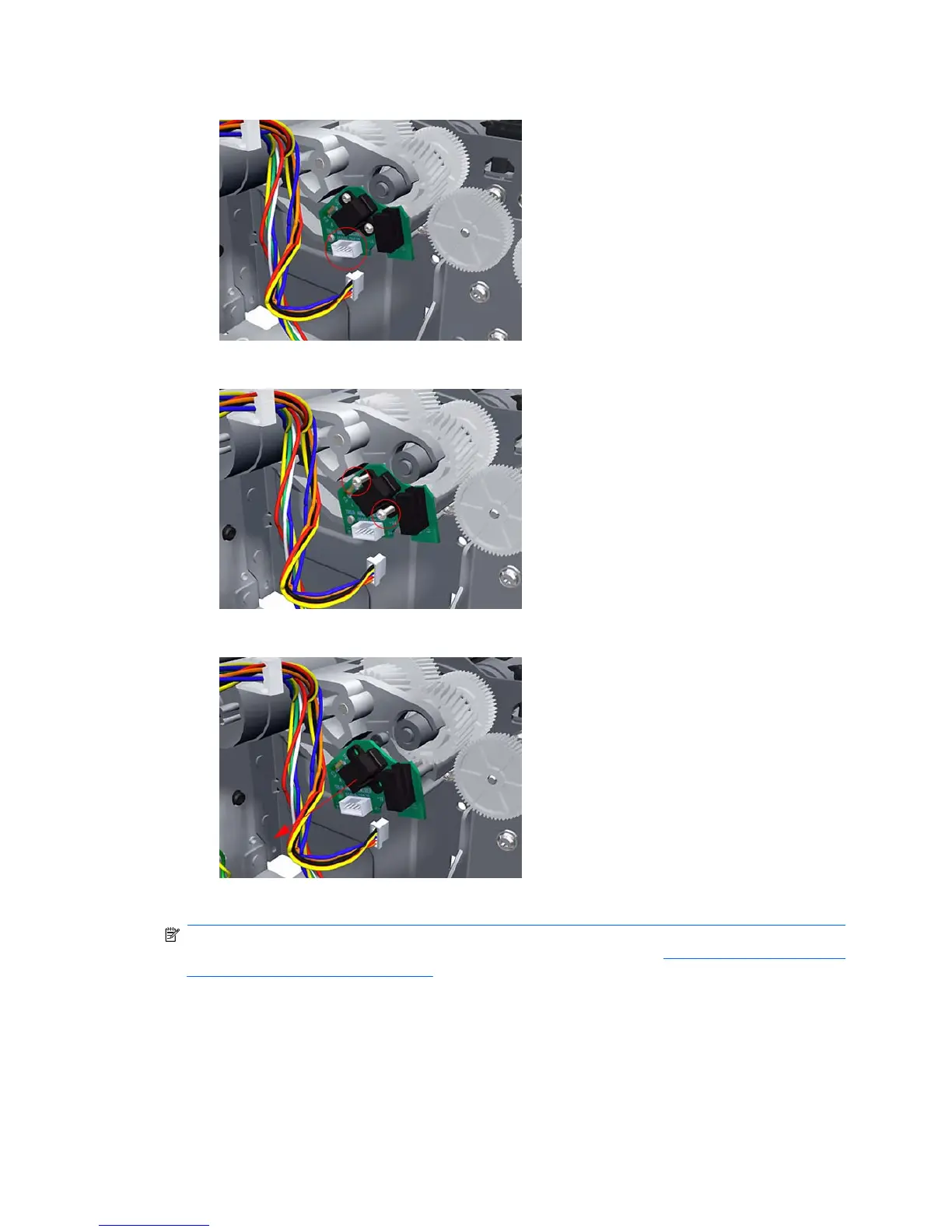

6. Remove two T-6 screws that secure the Encoder Sensor to the Media Advance Drive.
7. Remove the Encoder Sensor PCA from the printer.
Installation
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
NOTE: When you replace the Encoder Disk, clean it with the alcohol included in the toolkit.
