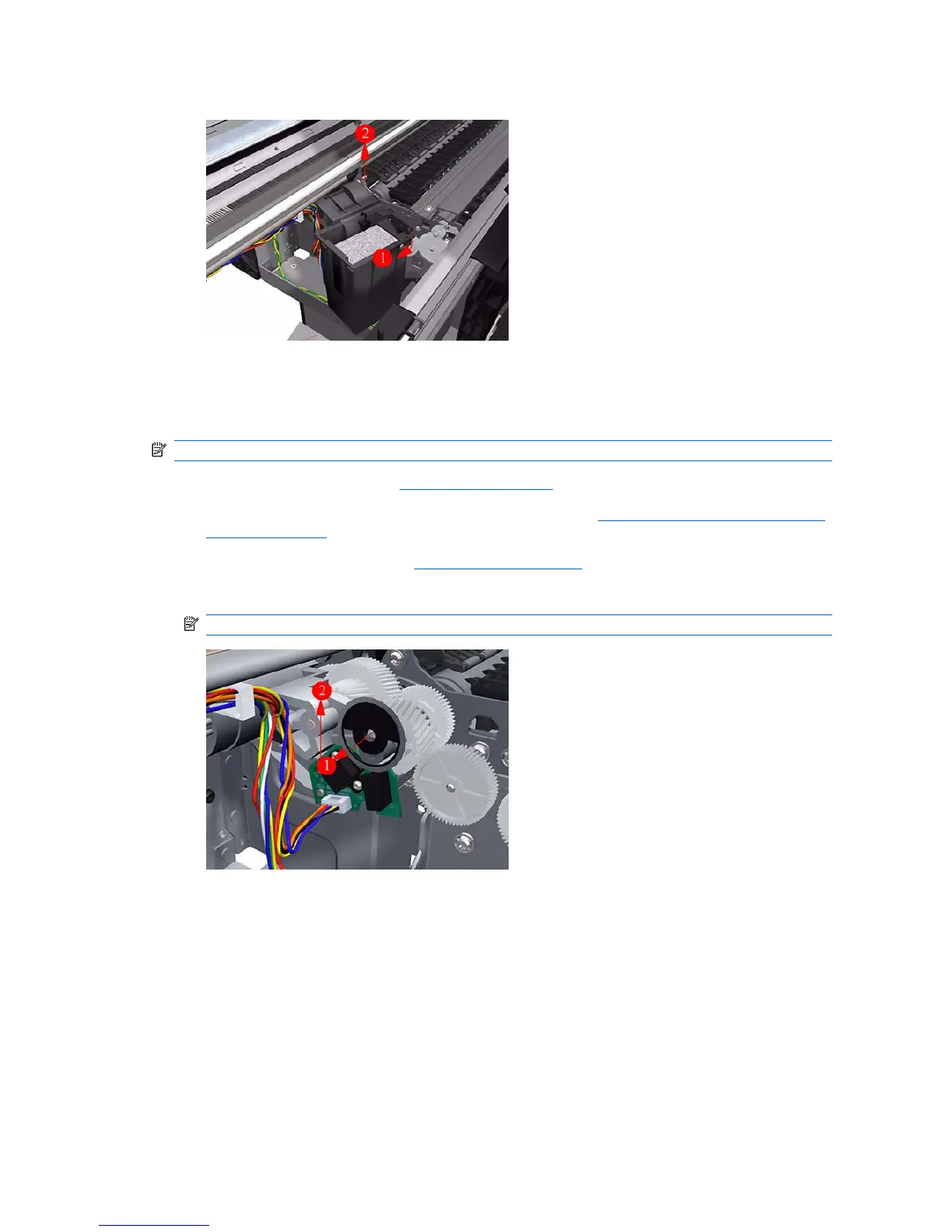

6. Rotate the Left Spittoon clockwise approximately 45 degrees and carefully lift it out of the printer.
Encoder Disk and Encoder Sensor
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Left Cover (refer Left Cover on page 188).
2. Remove the Electronics Module (Main PCA and PSU) (refer
Electronics Module (Main PCA and
PSU) on page 298).
3. Remove the Left Spittoon (refer
Left Spittoon on page 306).
4. Remove the Encoder Disk straight off Media Advance Roller spindle, lift it straight out of the printer.
NOTE: The Media Advance Roller spindle is delicate. Remove the Encoder Disk gently.
308 Chapter 6 Removal and Installation ENWW
