HP DesignJet Z5200 series

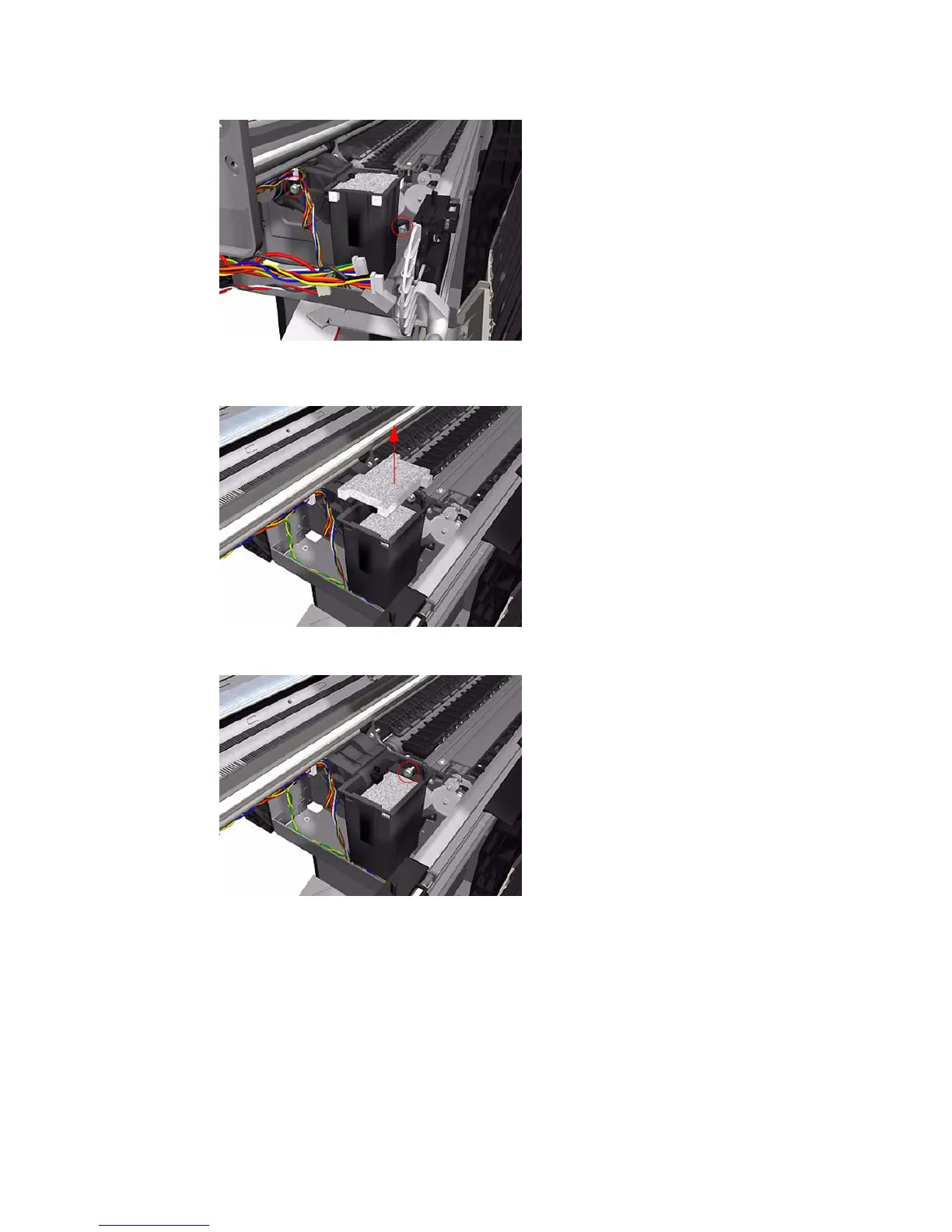

3. Remove two T-8 screws that secure the Left Spittoon to the printer.
4. Use protective gloves and remove the top segment of foam from the Left Spittoon (to gain access
to the last attachment screw).
5. Remove one T-10 screw that secures the Left Spittoon to the printer.
ENWW Left Spittoon 307
