HP DesignJet Z5200 series

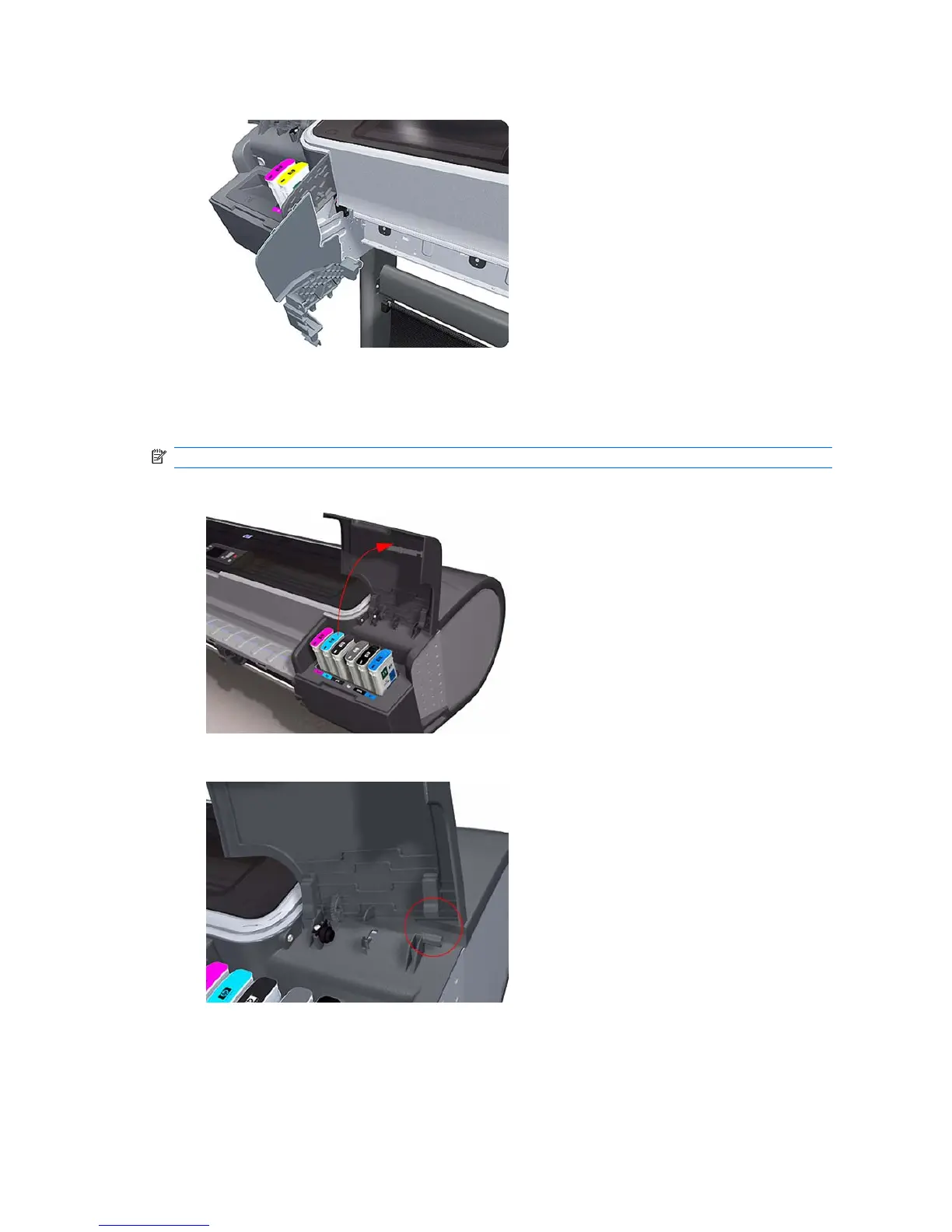

6. Remove Left Front Trim from the printer.
Right Ink Cartridge Door
Removal
NOTE: Switch off the printer and remove the power cable.
1. Open the Right Ink Cartridge Door.
2. Unclip the right side of the Right Ink Cartridge Door.
182 Chapter 6 Removal and Installation ENWW
