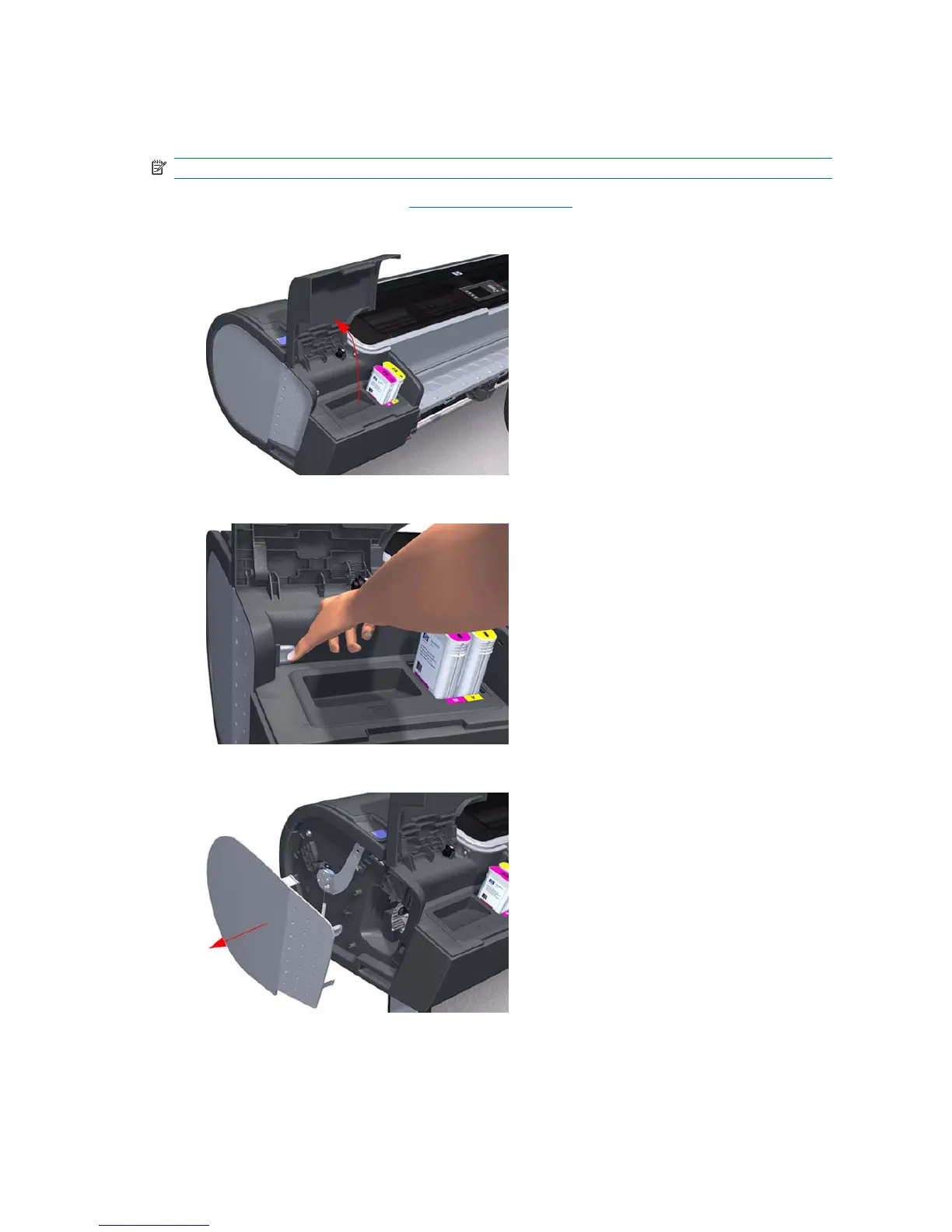

Left Cover
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Front Cover (refer Front Cover on page 177).
2. Open the Left Ink Cartridge Door.
3. Press the clip to release the Left Cover Finishing Panel.
4. Remove the Left Cover Finishing Panel.
188 Chapter 6 Removal and Installation ENWW
