HP DesignJet Z5200 series

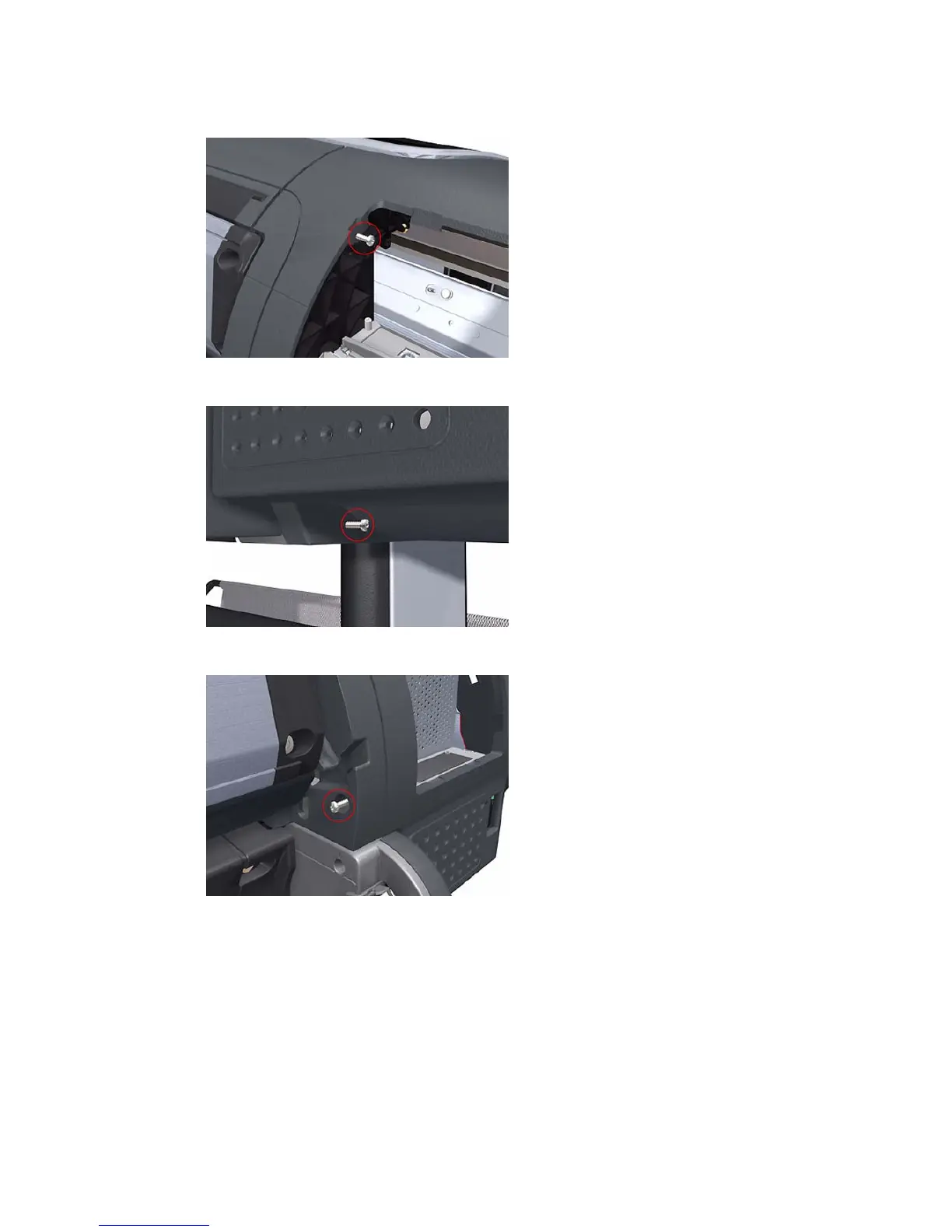

14. Remove one T-15 screw that secures the Left Cover (top rear, accessible under the Formatter
Housing).
15. Remove one T-15 screw that secures the Left Cover (bottom rear).
16. Remove one T-15 screw that secures the Left Cover (bottom rear).
192 Chapter 6 Removal and Installation ENWW
