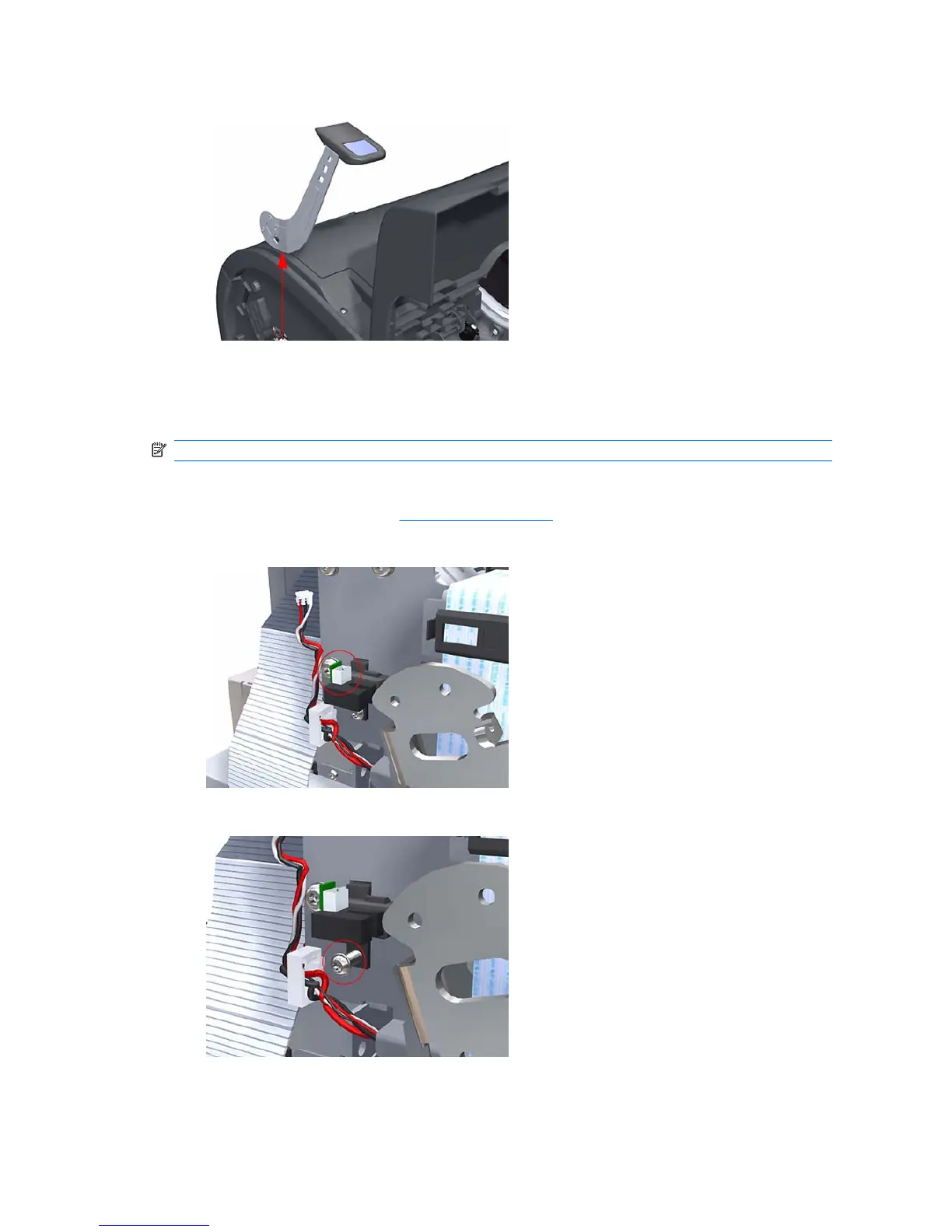

7. Remove the Media Lever from the printer.
Media Lever Position Sensor
Removal
NOTE: Switch off the printer and remove the power cable.
1. Raise the Media Lever.
2. Remove the Left Cover (refer
Left Cover on page 188).
3. Disconnect the Media Lever Position Sensor.
4. Remove one T-15 screw that secures the Media Lever Position Sensor to the Scan Side Panel.
