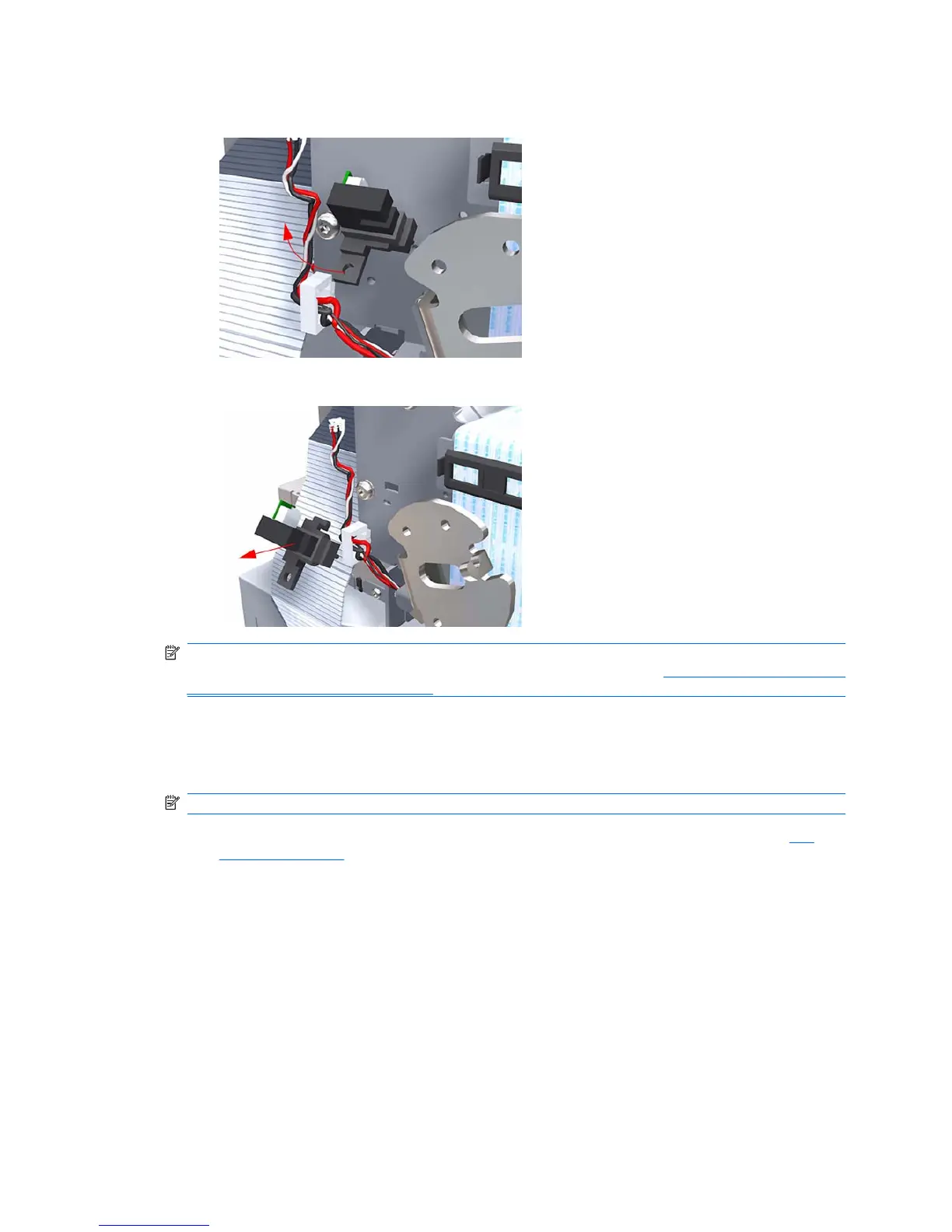

5. Rotate the Media Lever Position Sensor vertically to disengage the attachment lug from the Scan
Side Panel.
6. Remove the Media Lever Position Sensor.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Cutter Assembly
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Left Cover Finishing Panel (refer to step 3 for the removal procedure of the Left
Cover on page 188).
ENWW Cutter Assembly 199
