HP DesignJet Z5200 series

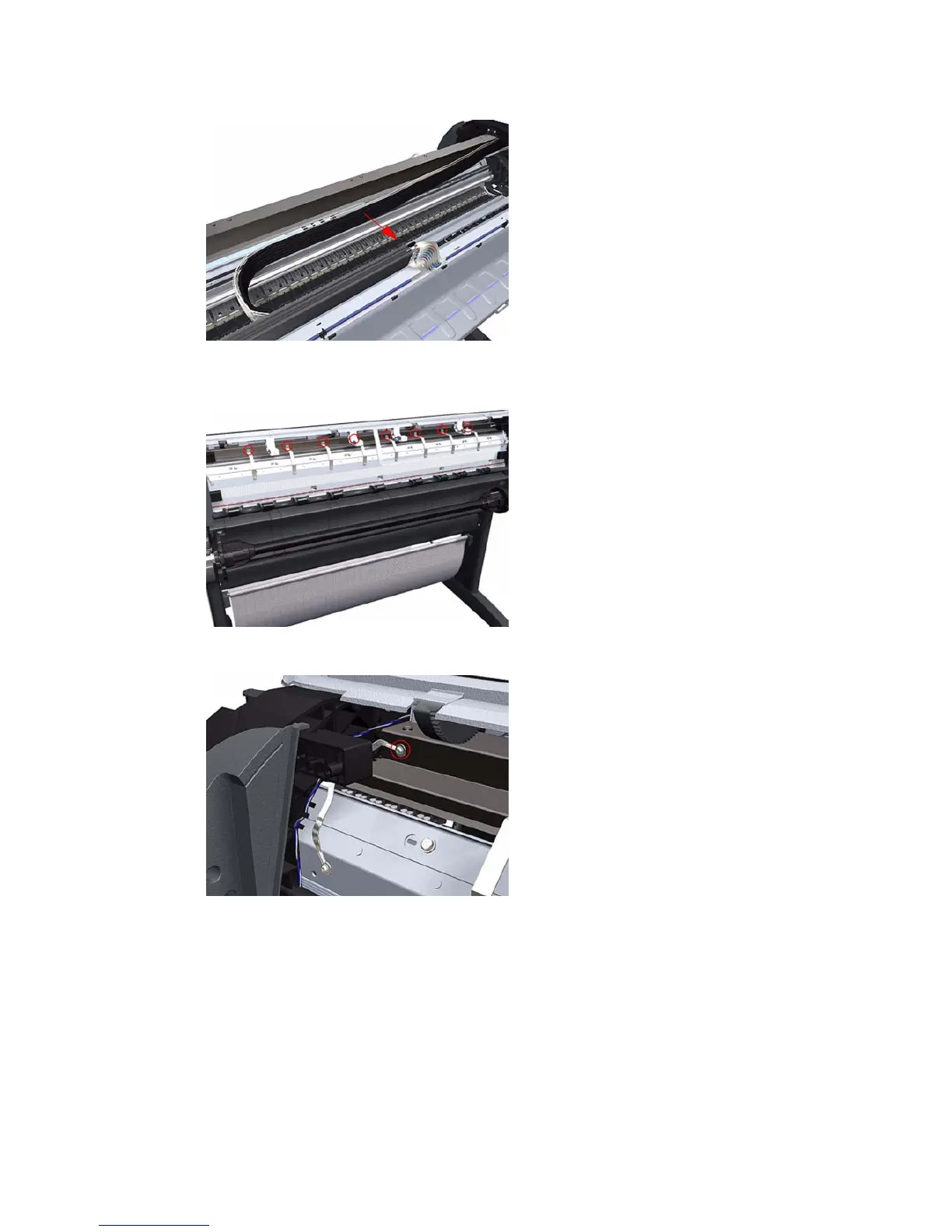

6. Remove the Ink Supply Tubes from the Ink Supply Tubes Support Rail.
7. Remove the T-15 screws that secure the rear attachment brackets to the Ink Supply Tubes Support
Rail.
8. Remove the T-15 screw that attaches the right bonding cable.
210 Chapter 6 Removal and Installation ENWW
