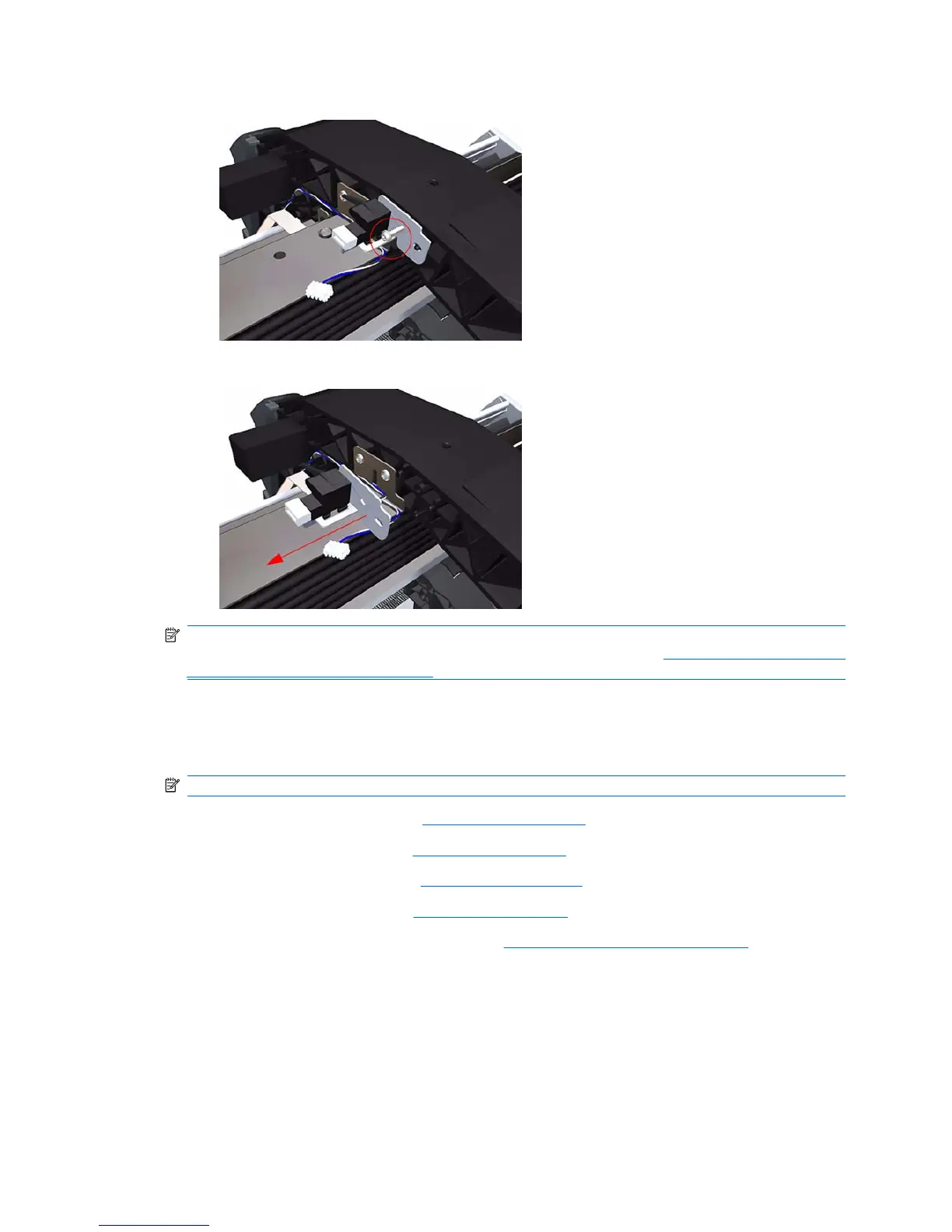

6. Remove one T-15 screw that secures the Window Position Sensor to the printer.
7. Remove the Window Position Sensor to the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Ink Supply Tubes Support Rail
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Left Cover (refer
Left Cover on page 188).
3. Remove the Front Panel (refer
Front Panel on page 203).
4. Remove the Top Cover (refer
Top Cover on page 205).
5. Remove the Window Position Sensor (refer
Window Position Sensor on page 208).
ENWW Ink Supply Tubes Support Rail 209
