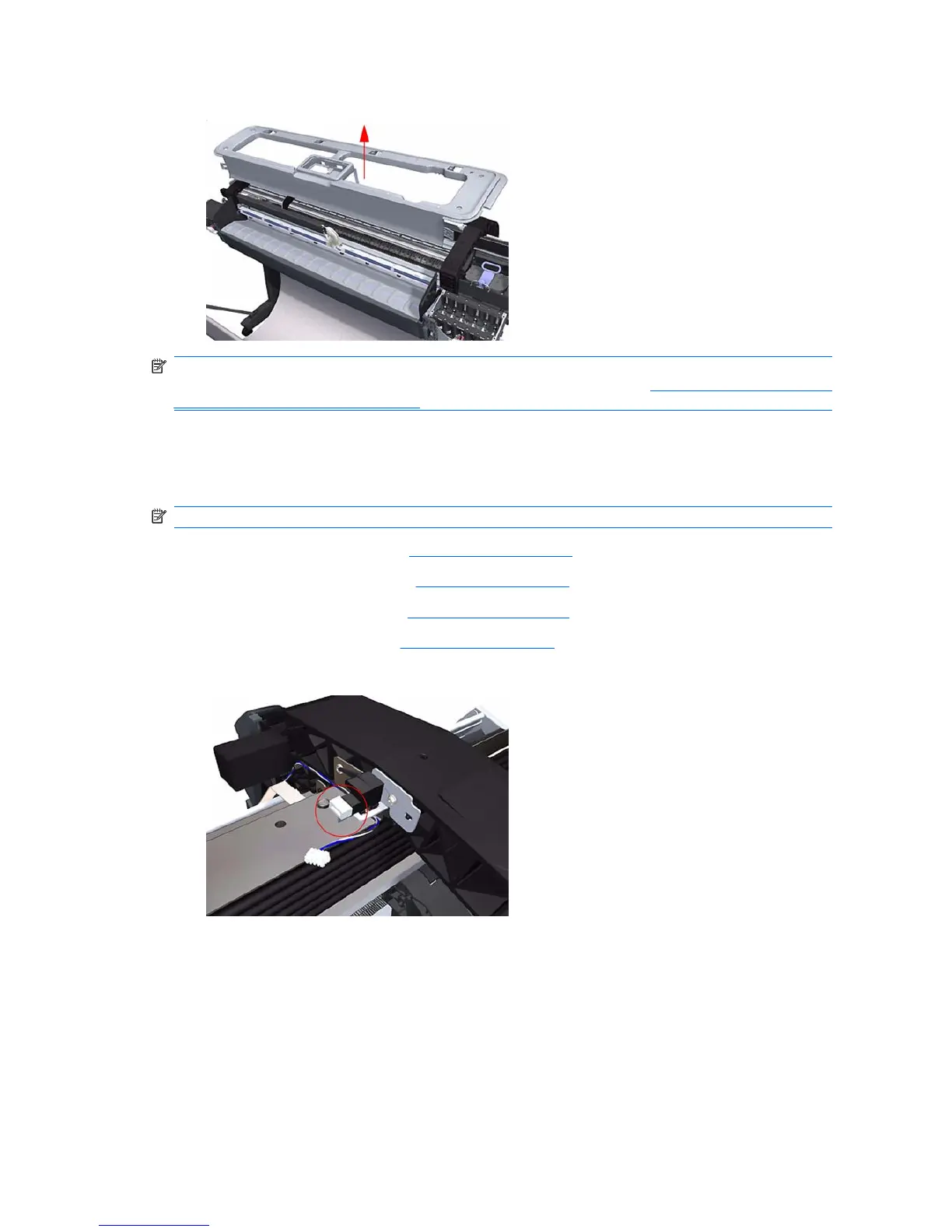

14. Lift the Top Cover off the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Window Position Sensor
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Left Cover (refer to
Left Cover on page 188).
3. Remove the Front Panel (refer
Front Panel on page 203).
4. Remove the Top Cover (refer
Top Cover on page 205).
5. Disconnect the Window Position Sensor.
208 Chapter 6 Removal and Installation ENWW
