HP DesignJet Z5200 series

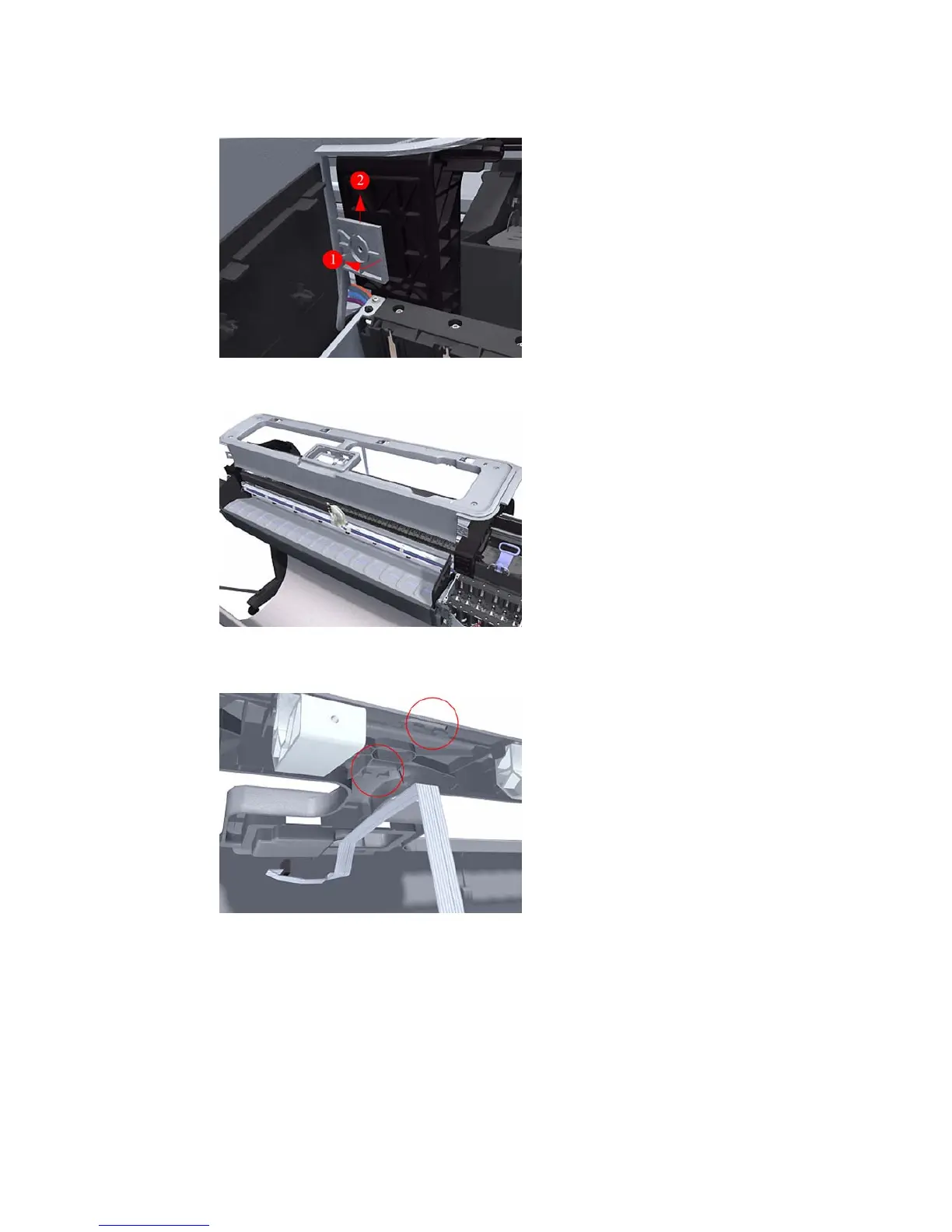

11. Carefully pull the attachment clip forward until you can lift the bottom left corner of the Top Cover
approximately 10 mm.
12. Lift the Top Cover of the printer sufficiently to gain access to the Front Panel ribbon cable.
13. Unroute the Front Panel ribbon cable from the two cable clamps on the bottom surface of the Top
Cover.
ENWW Top Cover 207
