HP DesignJet Z5200 series

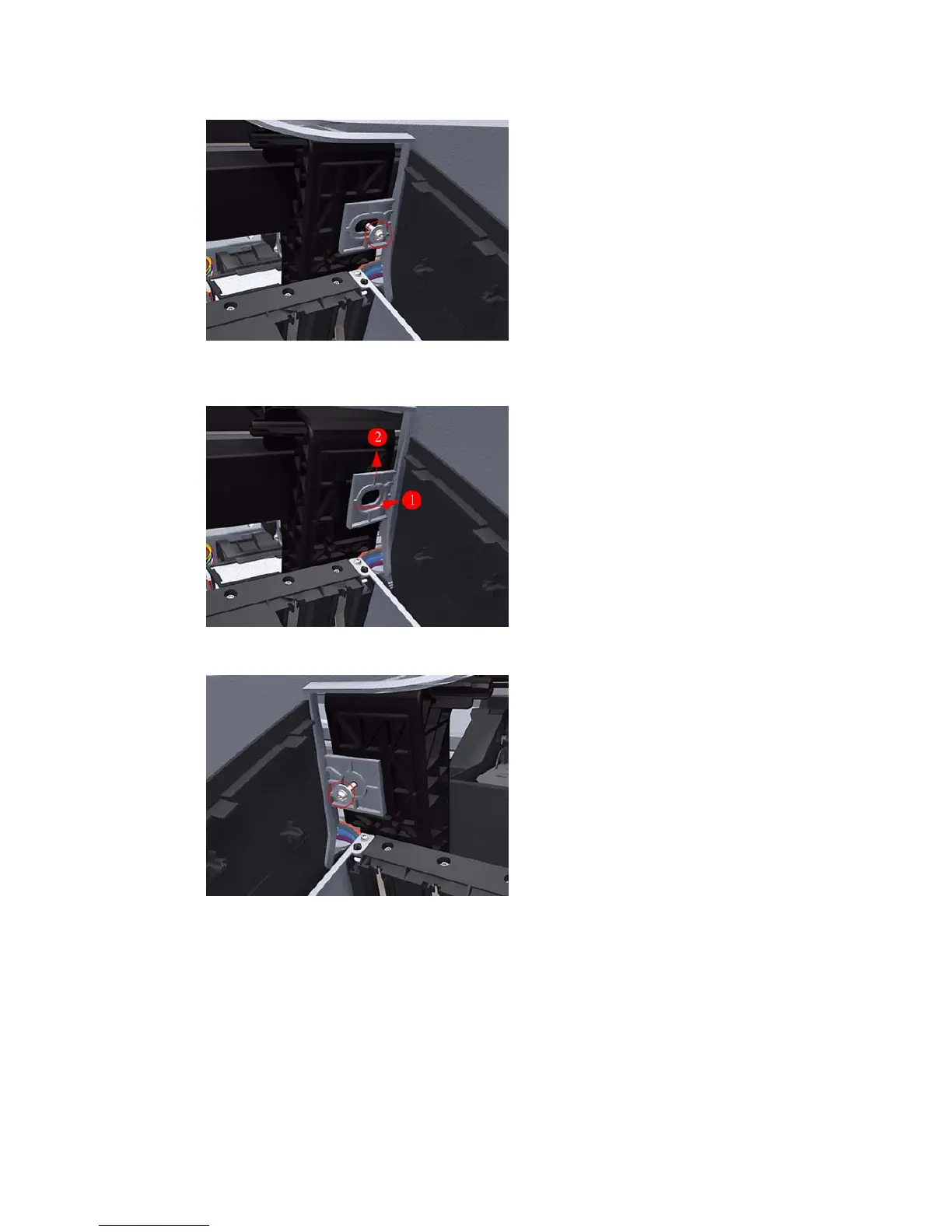

8. Remove the front T-15 screw that secures the front left side of the Top Cover to the printer.
9. Carefully pull the attachment clip forward until you can lift the bottom left corner of the Top Cover
approximately 10 mm.
10. Remove the front T-15 screw that secures the front left side of the Top Cover to the printer.
206 Chapter 6 Removal and Installation ENWW
