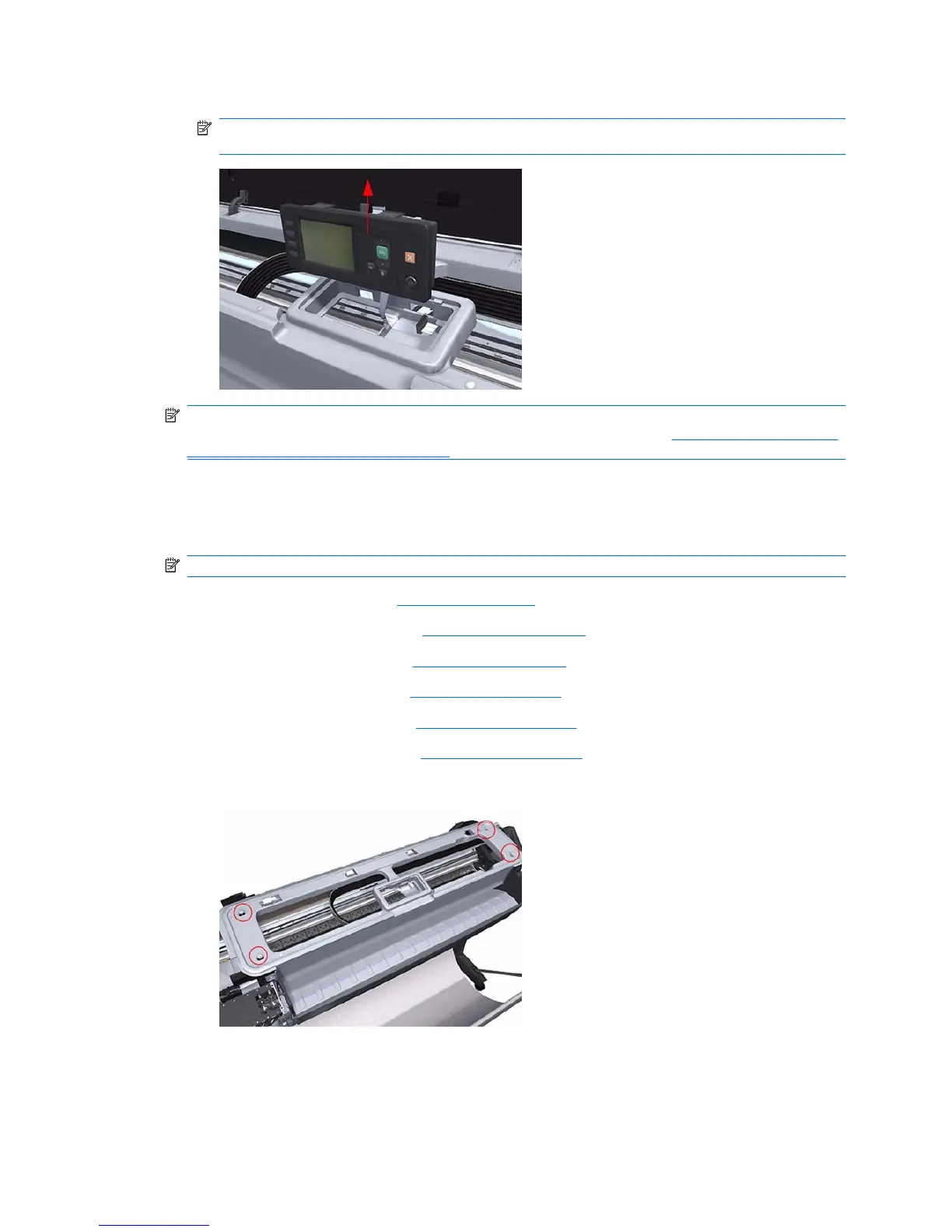

7. Remove the Front Panel.
NOTE: When you reinstall the Front Panel, you must make sure that the Ferrite Core is correctly
positioned. The Ferrite Core is necessary to avoid electrostatic interference being generated.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, Refer to
Service Calibration Guide
to Removal and Installation on page 170.
Top Cover
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Window (refer Window on page 174).
2. Remove the Right Cover (refer
Right Cover on page 185).
3. Remove the Left Cover (refer
Left Cover on page 188).
4. Remove the Rear Tray (refer
Rear Tray on page 194).
5. Remove the Rear Cover (refer
Rear Cover on page 195).
6. Remove the Front Panel (refer
Front Panel on page 203).
7. Remove the four T-15 top screws that secure the Top Cover to the printer.
ENWW Top Cover 205
