HP DesignJet Z5200 series

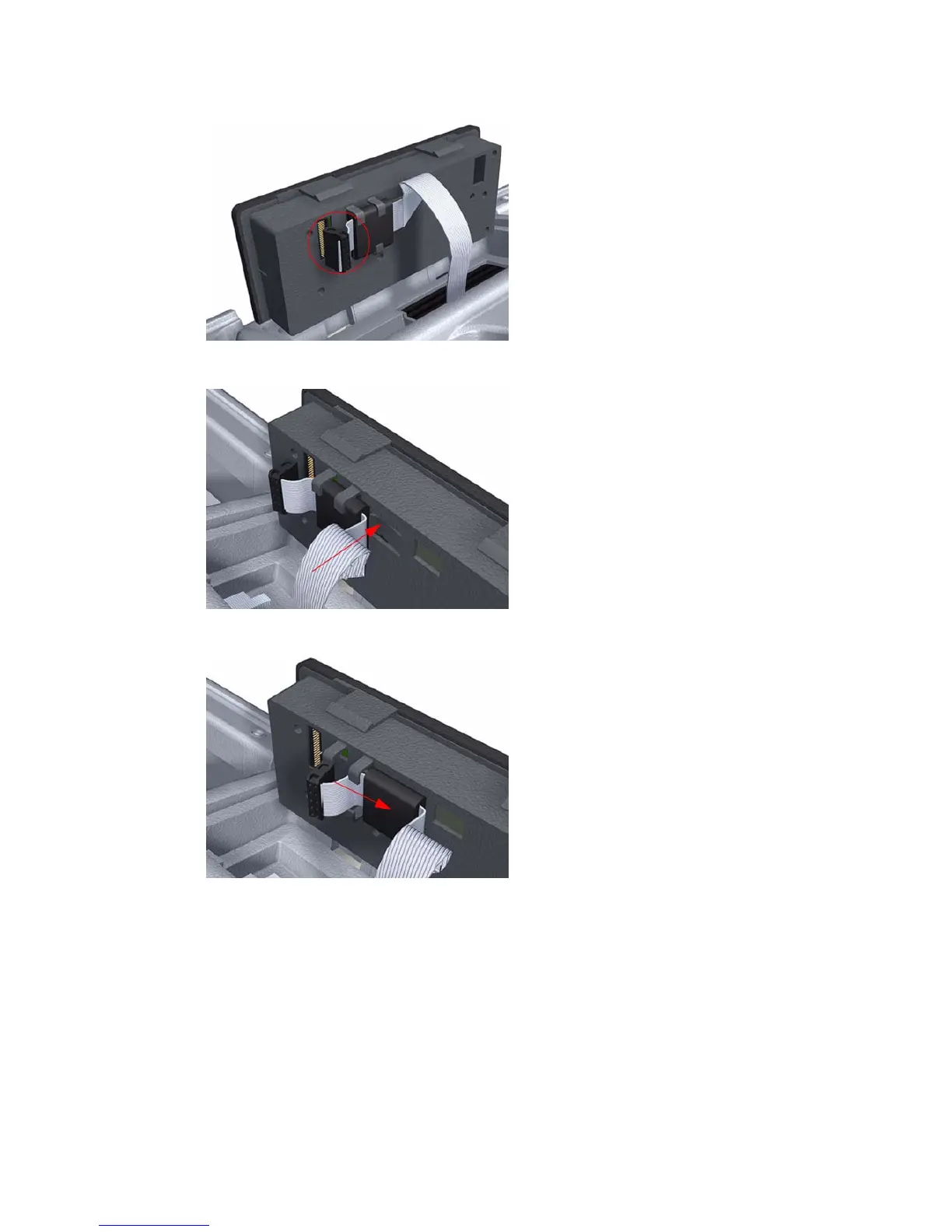

4. Disconnect the interface cable from the Front Panel.
5. Push in the clip that prevents the Ferrite Core from being removed.
6. Slide the Ferrite Core out of the brackets.
204 Chapter 6 Removal and Installation ENWW
