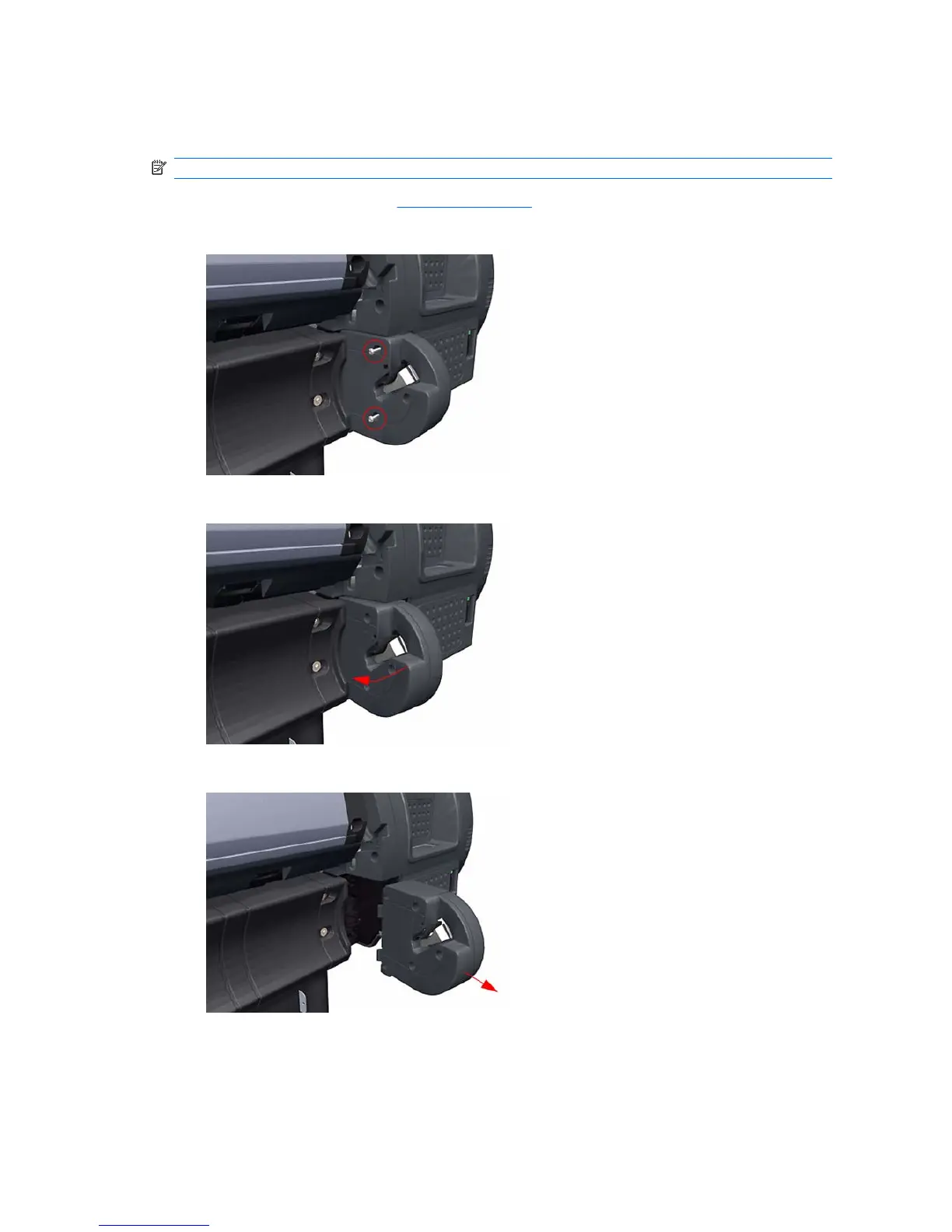

Left Spindle Holder
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Spindle (refer to Spindle on page 223).
2. Remove two T-15 screws that secure the Left Spindle Holder to the printer.
3. Rotate the Left Spindle Holder towards the left.
4. Remove the Left Spindle Holder from the printer.
Right Spindle Holder
Removal
224 Chapter 6 Removal and Installation ENWW
