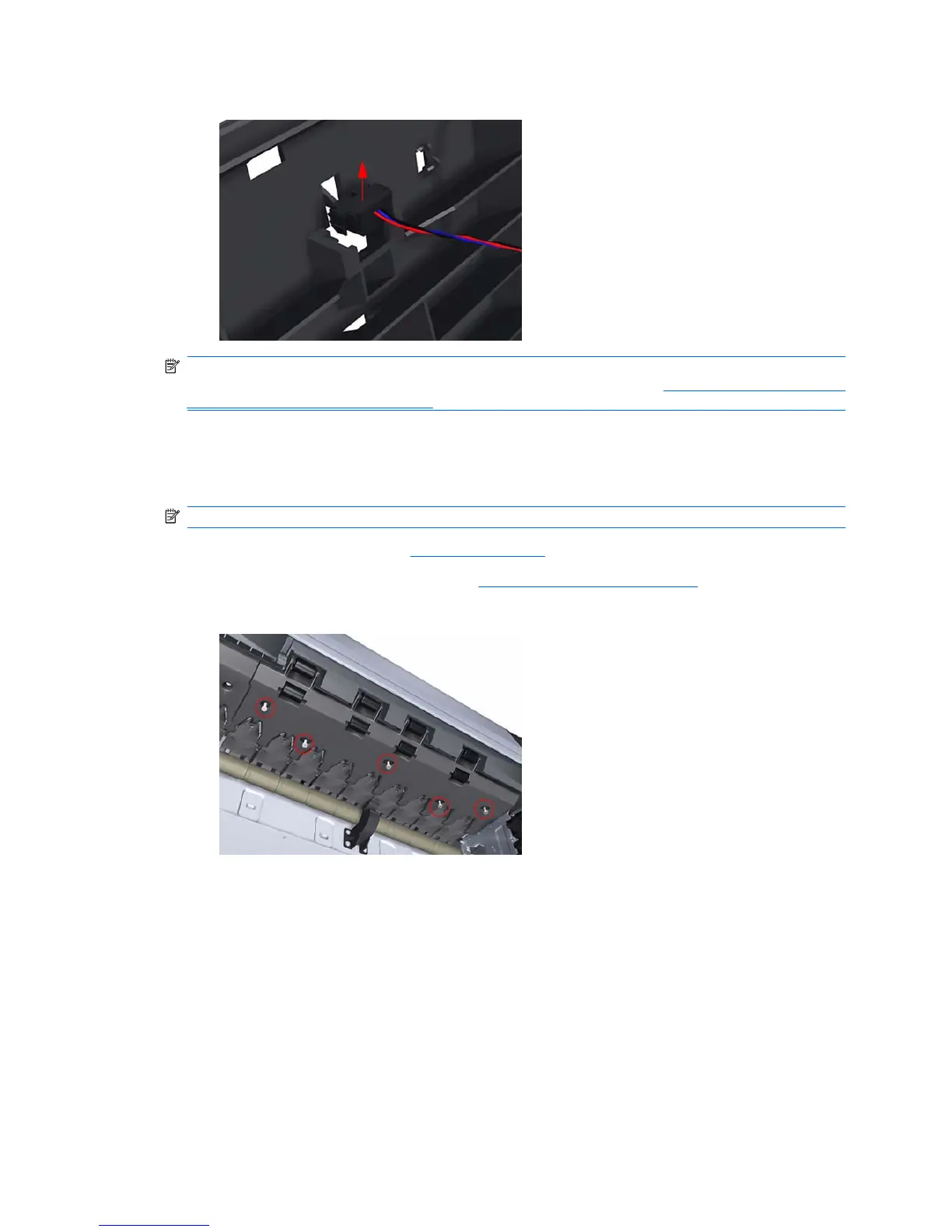

9. Lift the Out Of Paper Sensor out of the Clean Out Assembly.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Left Roll Guide
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Spindle (refer to Spindle on page 223).
2. Remove the Clean Out Assembly (refer
Clean Out Assembly on page 225).
3. Remove five T-15 screws that secure Left Roll Guide to the printer.
ENWW Left Roll Guide 229
