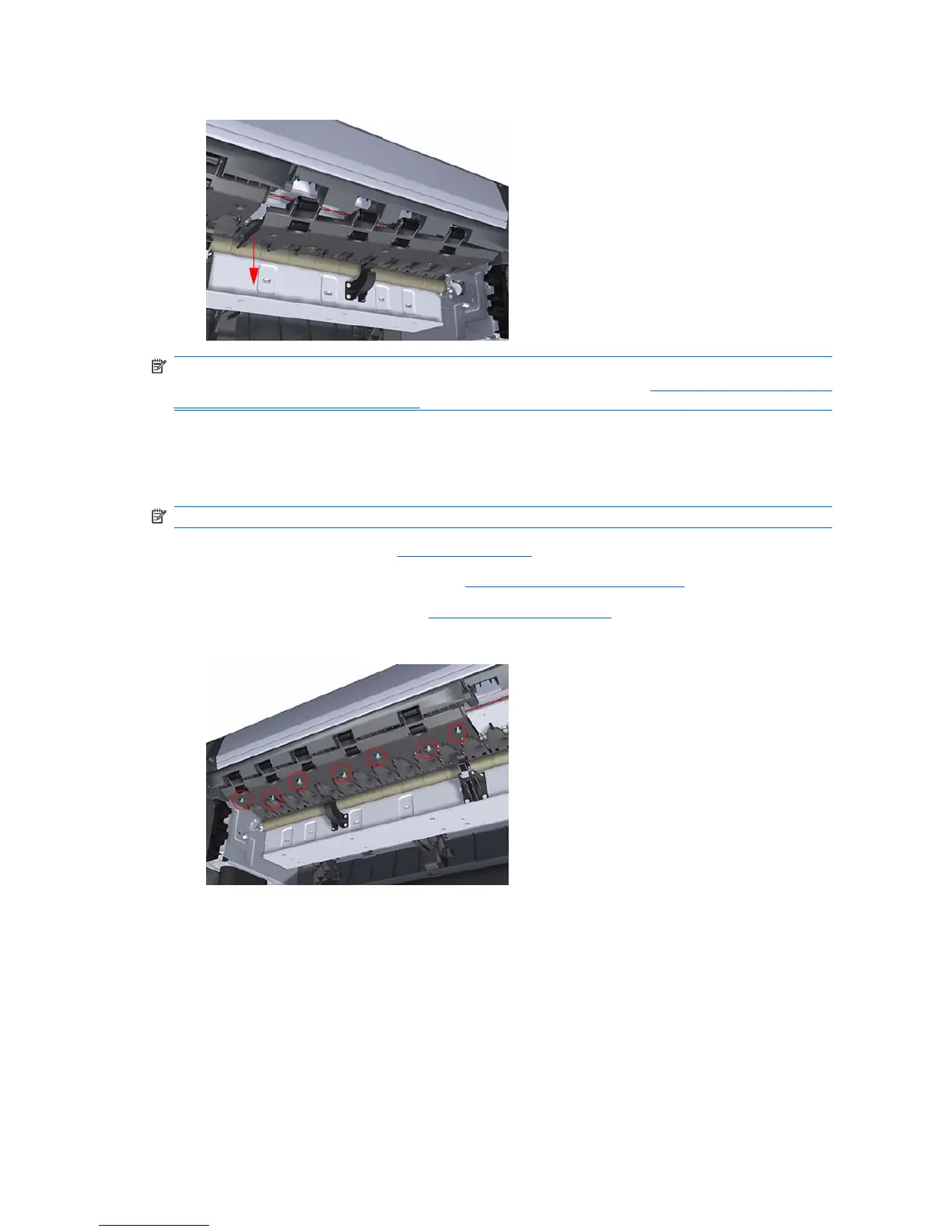

4. Lower the left end and remove the Left Roll Guide from the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Right Roll Guide
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Spindle (refer to Spindle on page 223).
2. Remove the Clean Out Assembly (refer
Clean Out Assembly on page 225).
3. Remove the Left Roll Guide (refer
Left Roll Guide on page 229).
4. Remove seven T-15 screws that secure Right Roll Guide to the printer.
230 Chapter 6 Removal and Installation ENWW
